4 Pcs Infrared Motion Sensor Light Switch AC 110-220V PIR Sensor Smart Detection Switch for Energy Saving Lamp LED Ceiling Light

Product Description

Item Specifications

Product size:35*27.5mm

Material:ABS, PC

Color:White

Package

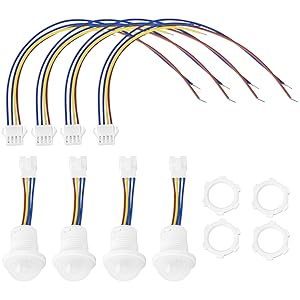

4x Sensor

Package Dimensions ‏ : ‎ 5.91 x 4.72 x 1.38 inches; 2.12 ounces
Date First Available ‏ : ‎ December 4, 2024
Manufacturer ‏ : ‎ YINETTECH
ASIN ‏ : ‎ B0DPHDK68S

When wiring, the brown wire is the live wire, the input voltage is 220v, the yellow wire is the output live wire, connecting devices not exceeding 40W, and the blue wire is the neutral wire, and there is no need to distinguish between long and short.
Sensor working voltage: AC85-265V, sensing range: 3-5 meters, working time: 30 seconds. Sensing angle: 120°. Working temperature: -20°C~40°C.
Sensor size: 27.5mm x 27.5mm x 35mm. The suggested hole is about 26mm. The line length is 20cm and 12cm.
The infrared sensor switch for LED lighting is suitable for energy-saving lamps, LED lamps, and can also be used in corridors, bathrooms, basements, garages, closets, advertising light boxes, etc.

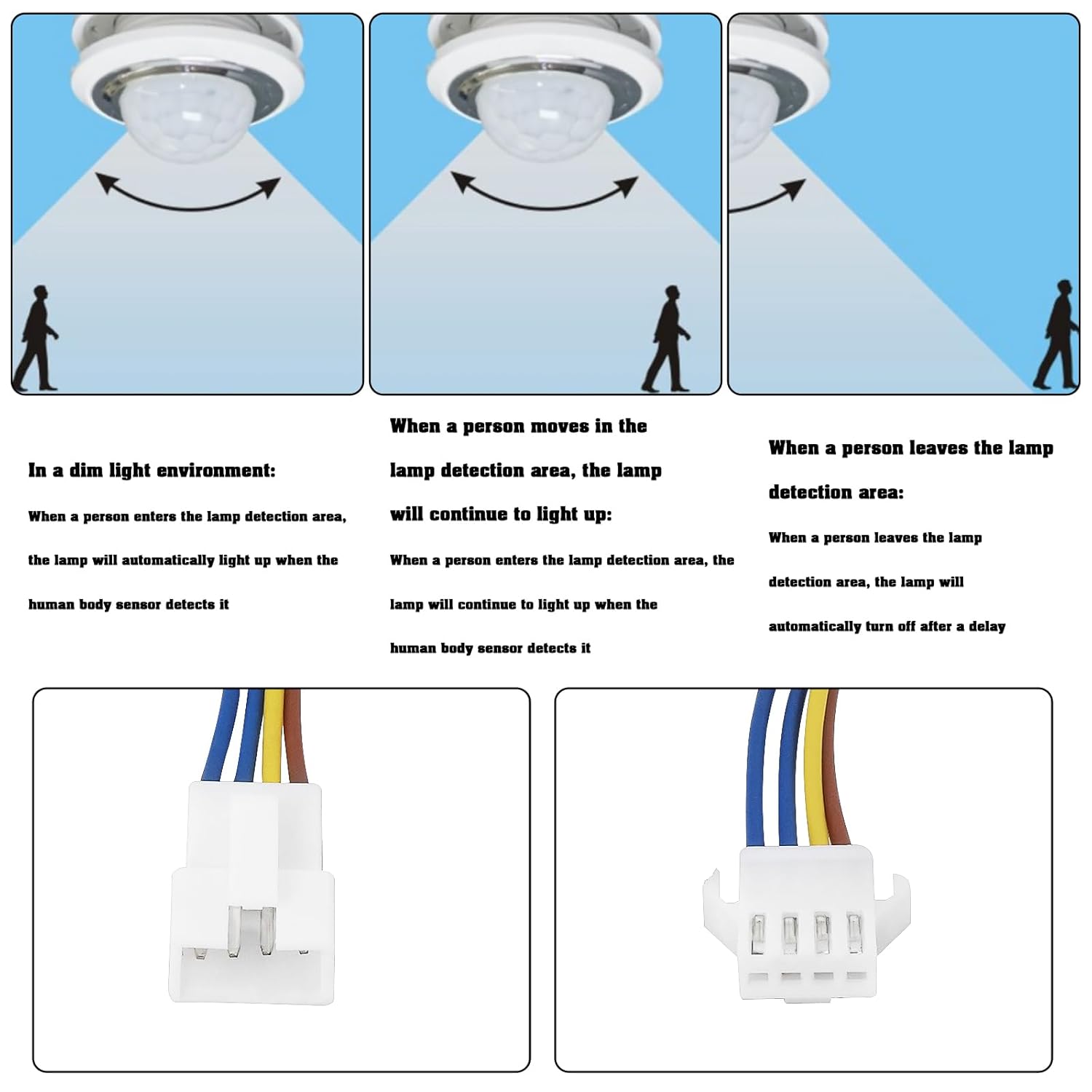

This PIR infrared motion sensor module can automatically detect human activities and control light switches, which is energy-saving and environmentally friendly and suitable for automatic control of LED lighting.
