ACiQ 2 Tons 16.5 SEER2 High Efficiency Central Air Conditioner Condenser with 17.5″ Multi-Positional Evaporator Cased Coil & Thermostat Only – R410A Two Stage | 24000 BTU System

Product description

ACiQ AIR CONDITIONER INVERTER WITH EVAPORATOR CASED COIL

The ACiQ Inverter Air Conditioners, also known as variable capacity or variable speed ACs, adjust the frequency of the electrical current that powers the compressor motor. This system fine-tunes the output of your HVAC by modulating the current to the compressor in precise increments. By maintaining continuous operation at reduced power levels, the inverter AC enhances energy efficiency, allowing you to enjoy a more consistent and comfortable indoor climate with our state-of-the-art inverter technology.

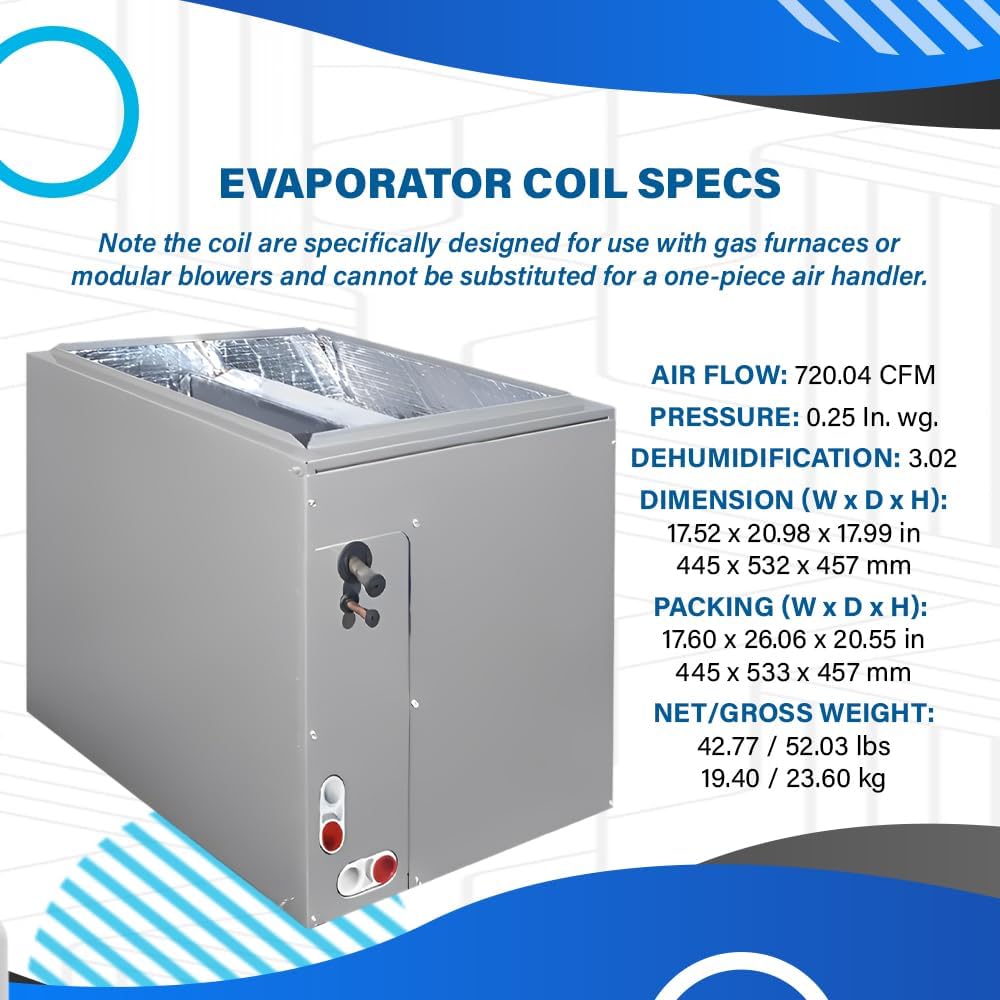

To go along with our inverter condenser, we offer a Multi-Position Evaporator Cased Coil that’s built to last. It comes with a sturdy pre-painted steel cabinet, aluminum main tubing, copper fin stubs for easy connections, and a corrosion-resistant drain pan made of durable Polybutylene Terephthalate (PBT) material. All of this ensures a long-lasting, efficient performance in any application.

INVERTER TECHNOLOGY WITH GOLD FIN CONDENSER COIL

This unit offers an array of features and benefits, including Inverter Technology enables variable refrigerant flow, ensuring max heat extraction during extreme cold temperatures. The Gold Fin Condenser Coil Coating adds durability, and the unit operates quietly even at high workloads, providing a comfortable and efficient heating and cooling solution.

ACiQ AC Series offers exceptional performance across a wide range of conditions. The system’s variable cooling output capability, ranging from 18,000 to 48,000 BTu/H (depending on the chosen tonnage), makes it suitable for diverse applications without the risk of short cycling.

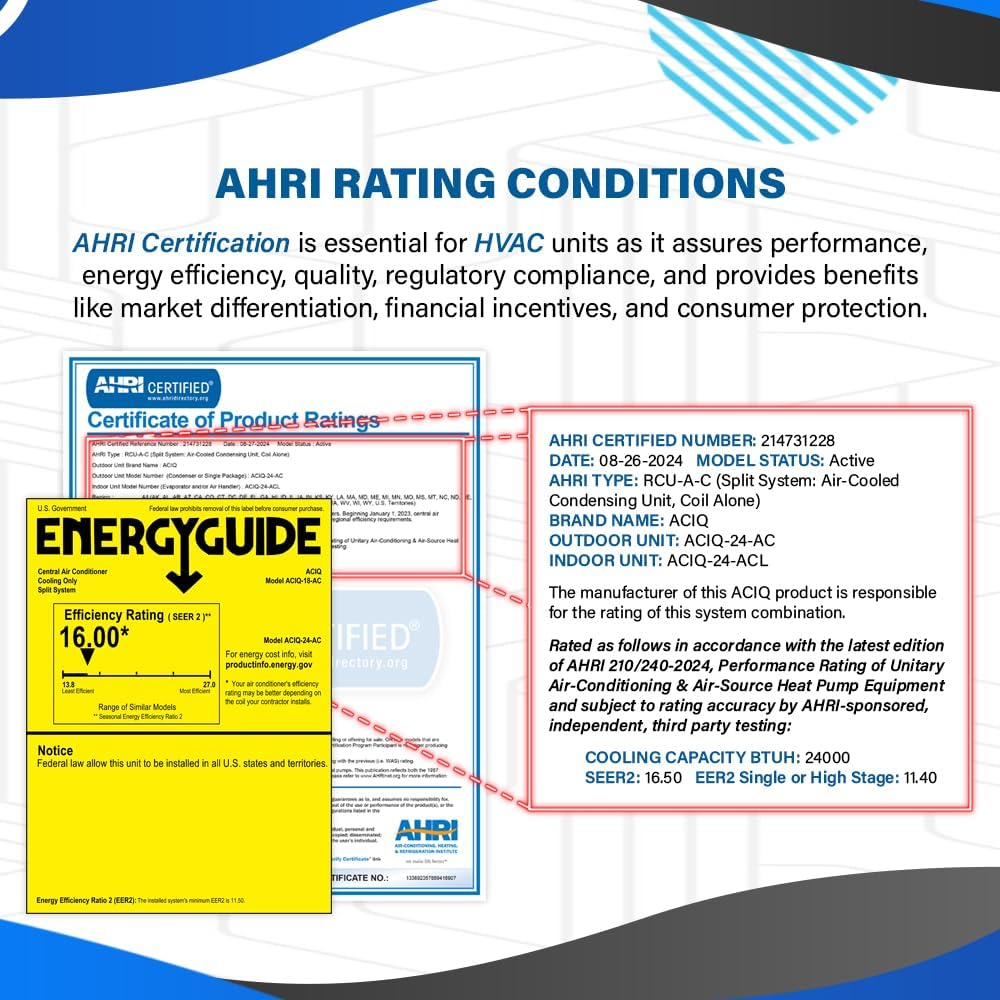

SEER Notice: The system SEER can be different from the condenser SEER, the true SEER rating achieved depends on the system as a whole and not just the condenser. We advertise the true SEER of the system and this can be verified with the AHRI number provided in the specs.

COMPLETE INSTALLATION KIT SET INCLUSION

The combination of high-quality components in the kit enhances the overall performance of the Air Conditioner Inverter and Mobile Home Evaporator Coil system. Purchasing the kit will prepare you for setup, lower the installation cost, and include the essential accessories you’ll need! Specifically crafted for durability and optimal performance, the installation kit plays a crucial role in prolonging the entire system’s lifespan and reducing the need for frequent repairs or replacements.

CHOOSE BETWEEN 3 KIT OPTIONS (No Install Kit, 30′ Install Kit, or 50′ Install Kit)

Our “No Install Kit” includes only a Smart Thermostat. While our “30′ Install Kit” and “50′ Install Kit” include the same Thermostat, a 3/8″ LL x 3/4″ SL x 3/8″ insulated Line Set, a 1/2″ x 6′ 10-gauge Electrical Whip, a 60A non-fused Disconnect Switch, an ICM Controls Surge Protector, a CPS Charging Adapter, a Wall Sleeve, and a Wall Mount Bracket (design varies depending on the unit’s tonnage).

Affordable Intelligence Comfort Solutions Unleashed Summer Cooling Control 18,000 to 48,000 BTU Cooling Energy Efficiency Up to 16.5 to 15.3 SEER Performance Electrical information 208-230 voltage, 1-Phase, 60Hz Summer-Proof Cooling 5°F to 122°F Outdoor Resilience Built to Last Gold Fin Condenser Coil’s Durability Silent Powerhouse Quietest Operation at Max Workloads Leak Detection Alerts on Leaks to Prevent Hazards

COOLING CAPACITY:
18,000 BTu/h 24,000 BTu/h 30,000 BTu/h 36,000 BTu/h 48,000 BTu/h

SEER (EER)
16.0 (11.7) 16.5 (11.4) 15.2 (11.5) 15.3 (11.0) 15.5 (11.0)

POWER SUPPLY
230v-1Ph-60Hz 230v-1Ph-60Hz 230v-1Ph-60Hz 230v-1Ph-60Hz 230v-1Ph-60Hz

SOUND LEVEL
57.0 dB(A) 61.5 dB(A) 62.5 dB(A) 65.0 dB(A) 65.0 dB(A)

REFRIGERANT
54.67 oz (R410A) 84.66 oz (R410A) 116.40 oz (R410A) 116.40 oz (R410A) 156.97 oz (R410A)

INDOOR AIR FLOW
550 SCFM 720 SCFM 960 SCFM 960 SCFM 1015 SCFM

COMPRESSOR
Rotary Type Rotary Type Rotary Type Rotary Type Rotary Type

WHY YOU SHOULD CHOOSE ACiQ?

ACiQ began with a simple idea: to bring high-quality, high-value HVAC products into American homes. The response has been fantastic, and we have experienced growth each year, introducing exciting new products along the way. Now, ACiQ has a complete catalog of products to meet every need, all while upholding our mission – to provide high-quality and high-value heating and cooling solutions to the public. What’s more, the entire lineup features best-in-class agreement protection so you can feel secure about your investment.

INVERTER AC: Adjusts compressor speed for perfect temperature control and reduced energy use. Promotes quieter, more efficient cooling, ideal for homes needing consistent comfort.
CASED COIL: Multi-positional cased coil with factory-integrated TXV ensures efficient operation in various installations, boosts HVAC performance and energy optimization.
FREE THERMOSTAT: The unit features a Smart Thermostat, offering a perfect blend of cutting-edge technology and user convenience.
WARRANTY TERMS: A duration of 7 year parts and 12 year compressor when installed by a tech and registered online with the manufacturer at no additional charge.
MORE INFO: Feel free to check out the Third and Fourth Photo or the Product Description section for valuable details on this unit’s specifications and features.
