BTF-LIGHTING Tuya Zigbee 3.0 C05Z Controller Support RGBCCT 6 pin (+V R G B CW WW) PWM LED Strip Bulb Compatible with Echo Plus/4th Gen Philip Gateway DC5V/DC12V/DC24V Max 15A
$20.99
Product Description
RGB CCT Color – 6 Pin LED
Parameters
Model: C05ZProduct Name: Zigbee 3.0 RGB CCT LED ControllerItem size(LxWxH):74.5×35.6×16.5(mm)RF: 2.4GHzControl Distance: 30m (98.42ft)APP name: Smart Life or Tuya Smart Support Third Part Voice Control : Echo Plus, Alexa and Google Home.Input voltage: DC5V ~ 24V (It depends on what LED strip you use), ( 5.5*2.1mm )Output: 6A/Channel (Total Output Max 15A) DC5V75W Max , DC12V180W Max , DC24V360W Max .Working Temperature: -25-45℃Control RGBCCT LED strip LED String LED bulb: FCOB 5630 2835 3528 5630 5730 5050 3014 etc no IC chip V+ Red Green Blue CW WW 6 wires LED stripNote: This controller can not work with RF Remote .Only LM052 5in1 controller can .
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars 719
4.1 out of 5 stars 153
4.5 out of 5 stars 316
4.2 out of 5 stars 14
4.3 out of 5 stars 719
4.1 out of 5 stars 153
Price
$24.99$24.99 $20.99$20.99 $14.99$14.99
— no data
$27.99$27.99 $25.99$25.99
Group Control
✓
✓
✓
✓
✓
✓
Controller
2.4GHz WiFi and 2.4GHz RF Remote ZigBee 3.0 2.4GHz WiFi and 2.4GHz RF Remote ZigBee 3.0 And 2.4GHz RF Remote Bluetooth Mesh And 2.4GHz RF Remote Bluetooth Mesh And 2.4GHz RF Remote
Gateway
no data
✓
✓
✓
no data
no data
APP
Smart Life/Tuya Smart Smart Life/Tuya Smart Smart Life/Tuya Smart Smart Life/Tuya Smart Smart Life/Tuya Smart Smart Life/Tuya Smart
Google Home/Alexa
✓
Need Gateway Need Gateway Need Gateway
✓
Need Gateway
Product Dimensions : 3 x 1.4 x 0.7 inches; 1.13 ounces
Item model number : C05Z
Date First Available : May 27, 2022
Manufacturer : BTF-LIGHTING Technology Co., Limited
ASIN : B0B2JR1DXZ
Country of Origin : China
C05Z Tuya Zigbee 3.0 LED controller. This Controller can control PWM RGB + CCT 6 wires LED strip. Such as FCOB,COB,5630,5730,5050SMD,3528SMD etc PWM LED strip Power: 6A/Channel Total output max 15A .DC5V 75W max .DC12V 180W max. DC24V 360W max.

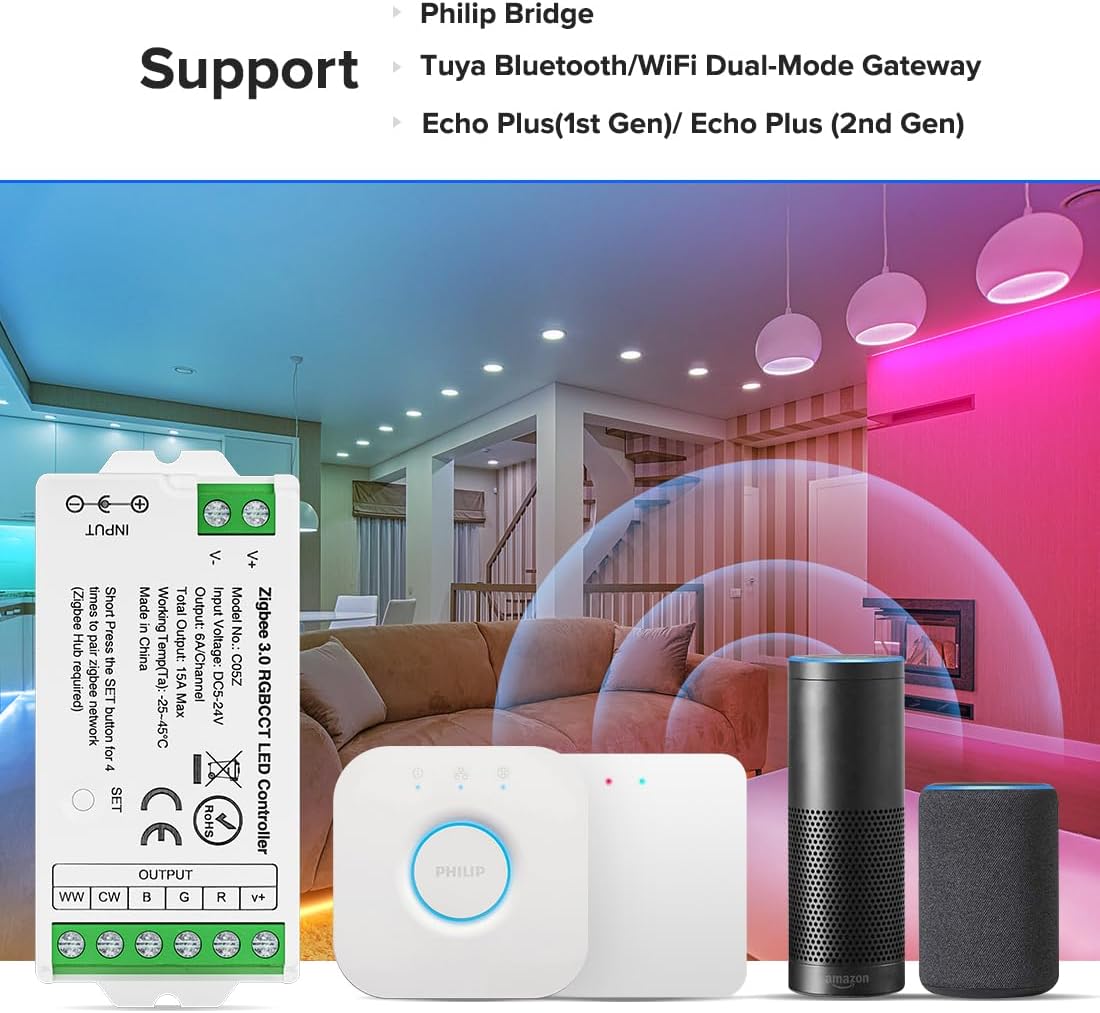

【Support Echo Plus,Echo(4th Gen),Philip H-UE and Home-Kit Gateway】Support Echo Plus,Echo(4th Gen),Philip H-UE and Home-Kit.Compatible with general Zigbee bridge.More stable and convenient connection with Zigbee Gateway.Work with Tuya Bluetooth/WiFi Dual-Mode Gateway,it can Support Third Part Voice Control like Alexa,Google Home.Package content: 1X LED controller 1X User manual.Can’t support Smart-Things.

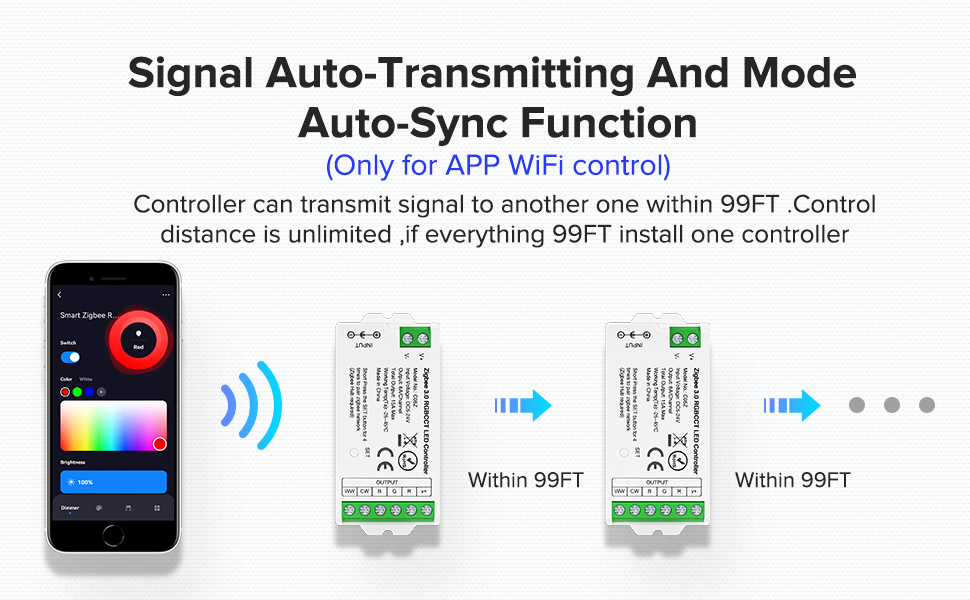

【Auto-transmitting function】One controller can transmit the signal from the APP control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the remote control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
Multiple functions. Group Control. Device sharing, tap-to-run, automation, 16 millions of colors, Dual White(Warm White and Cool White), Dim brightness.Memory function in case of power-down.DC12V DC24V Power Supply ,DC12V LED strip please must use DC12V Power supply.
Note: This controller can not work with RF Remote .Only LM052 5in1 controller can .
