Digital Non-Programmable Thermostat for House/Home 1 Heat/1 Cool Single-Stage, Large Font, Easy to Read, Easy to Adjust Manually, with Night Backlight.

Product Description

Precautions for products

1.Confirm whether the product is compatible with your system,

2.Confirm the size of the product to see if it can cover the traces left on the wall of the old thermostat.

Specifications:

Single Stage1 Heat, 1 CoolNon-programmablelarge LCD display with white backlightFan switch with ON and AUTO functionsLow battery indicatorElectric or Gas configurableSeparate B & O terminalsSeparate heating and cooling swing (cycle rate) adjustmentsRoom temperature calibration adjustment5 minute compressor delay protection (selectable on or off)Display options: Fahrenheit or Celsius temperature displayTerminal Designations RH, RC, G, Y, C, O, B, WProduct Dimensions: 0.98″D x 4.72″W x 3.86″H

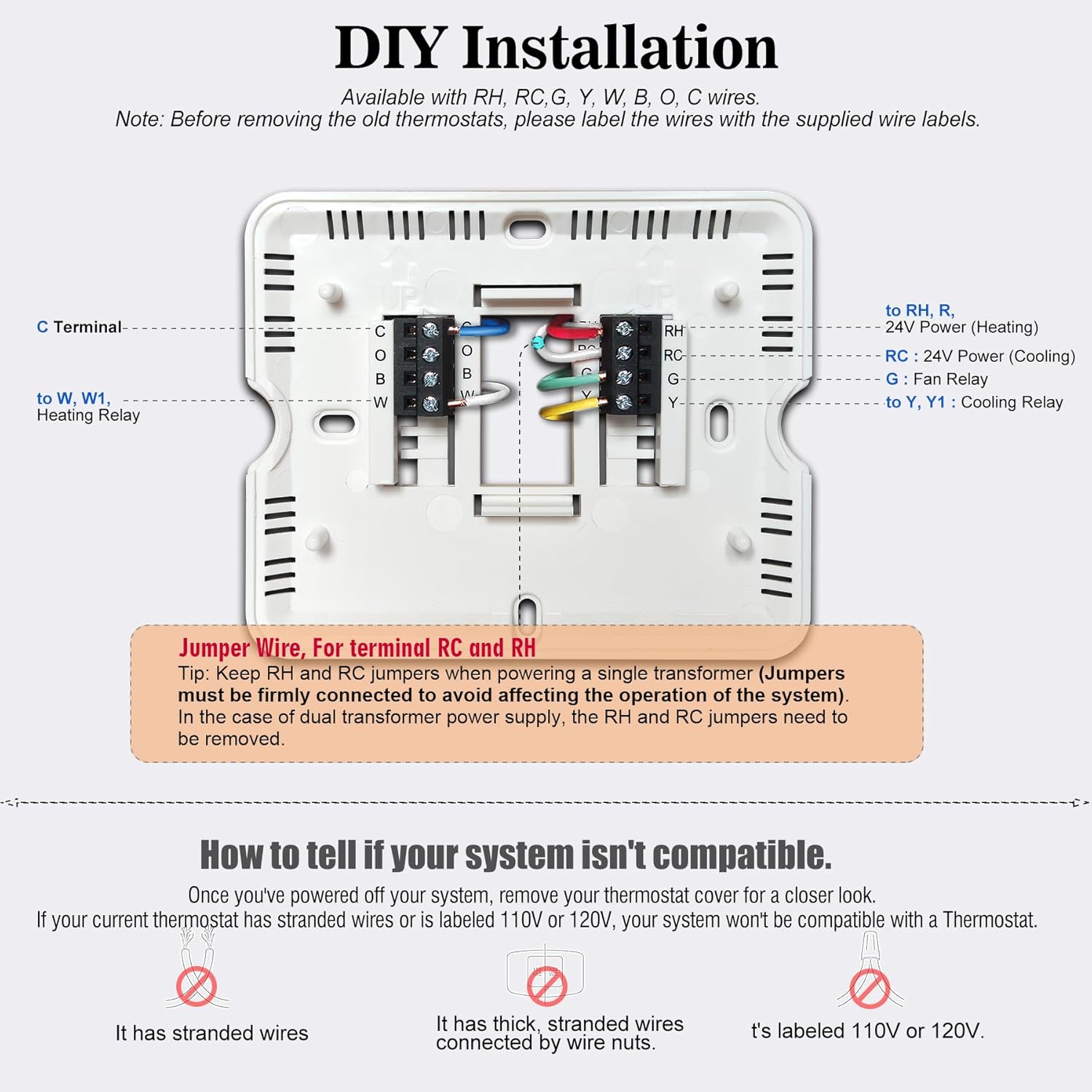

Buyers should thoroughly examine the installation and wiring instructions depicted in the images before buying. It is recommended to exercise caution if you lack experience in installation to avoid potential problems like product malfunction or incompatibility due to incorrect purchases. Note that the base can only be attached with a maximum of 2 to 5 wires, and connections with 6 to 8 wires are not suitable.
【Compatible Systems】for with Conventional Single-Stage Heating (Gas/Oil/Electric Furnace) & Ventilation & Air Conditioning, up to 1 Heat and 1 Cool. ( TIP: Does not work Multistage Heating & Air Conditioning, and HVAC Central Air Conditioner Heat Pump System )
【Incompatible Systems】Does not work: Multistage Heating & Cooling; HVAC Central Air Conditioner Heat Pump (with Auxiliary or Emergency Heating); Dual Fuel / Hybrid Heating; Mini Split Systems; 12V RV Thermostat; Electric Baseboard Heat ( 120-240 Volts), Convectors; Radiant Ceiling Heat; 3-wire Hydronic (Hot Water);
Simple Thermostat: Heagstat non-programmable thermostats for house conventional single-stage systems, up to 1 heat/1 cool to control the temperature in a room.
Easy to Set and Read: Digital thermostat, temperature display range (41°F to 95°F), temperature control range (44°F to 90°F). with large, clear white backlit digital display, very suitable for middle-aged and elderly people.
Separate Heating and Cooling Swing (Cycle Rate): Which will Either Prolong or Shorten the Temperature Open Time. Make Comfortable Temperatures to Teduce Energy Usage, Savings on Annual Heating and Cooling Costs. Reference manual page 14
Technical Support: Temperature display calibration (Fine adjustment -4F to 4F), Set fahrenheit or celsius units, 5-minute Compressor delay protection (selectable on or off). Reference manual page 14
Support Dual Powered 24VAC Power or 2 AAA Batteries. Friendly Service: 2-year Worry-Free Warranty and 24h Customer Servic.
