Product description





Specifications

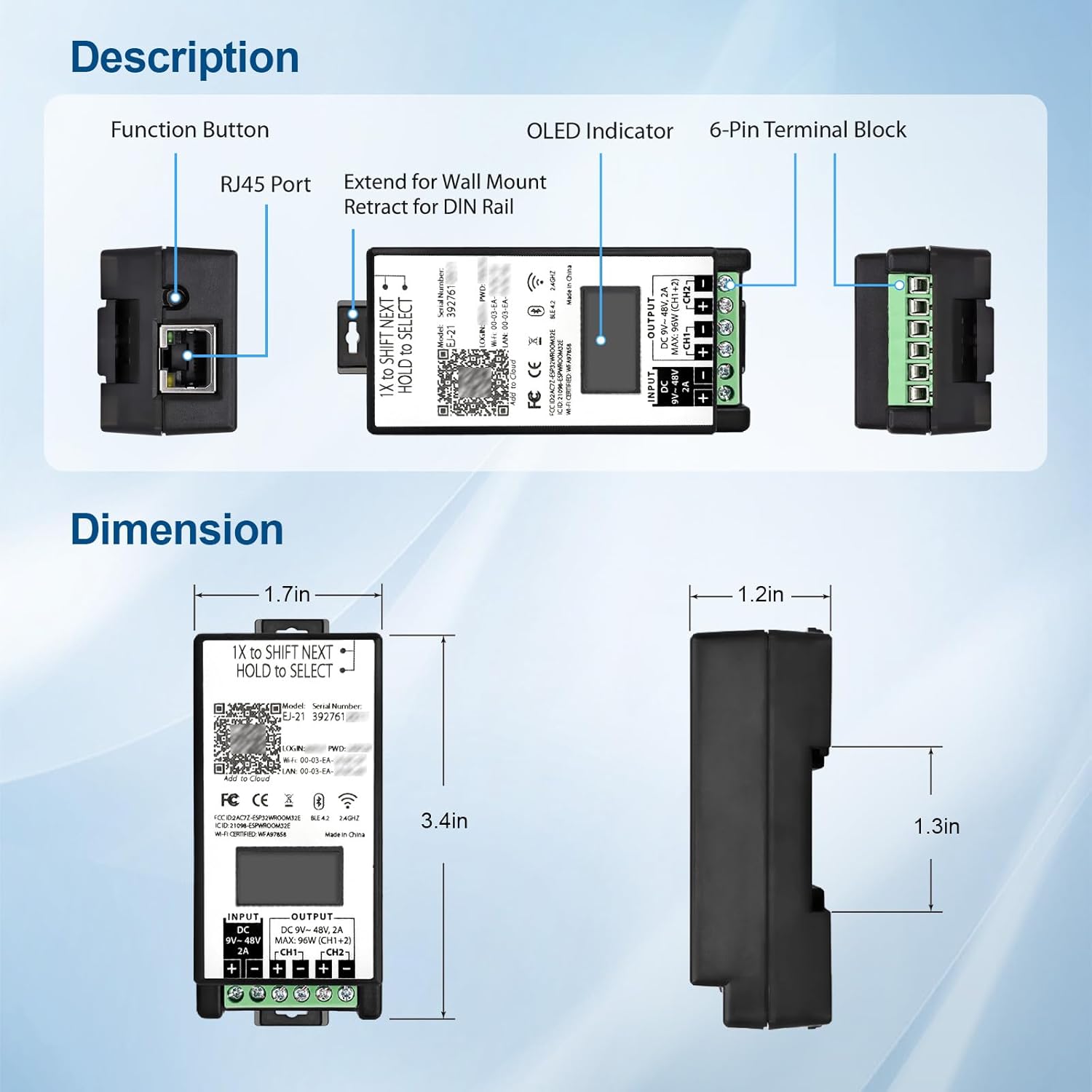

Model # EJ-21 Din Rail Specification: 1.TS-35/7.5/1.0 2.TS-35/15/1.5 3.DNR274 4. DNR314 5.DNR315 Function Button Press & Hold = Execute Selection / Press 1x = Goto Next Option Network Access 1.Ethernet 10/100 Base-T 2.Wi-Fi 2.4Ghz (802.11b/g) 3.Bluetooth BLE v4.2 Power Metering 1.Individual Channel Metering 2.Current (±2.0% ±0.1A) 3.Voltage (±2.0% ±0.1V) 4.Power (±2.0% ±0.1W) 5.Note: All values are for reference only. Electrical Rating Input: DC 9V~48V, 2A Output: DC 9V~48V, 2A (CH1 + CH2) MAX 96W. IP Support Android APP / iOS APP / Microsoft Edge / Chrome / Java / Safari browser Certification FCC ID (USA), NCC (Taiwan), KCC (Korea), CE (Europe), CMIIT ID (China), ISED ID (Canada), MIC (Japan) Operating Temperature 0°C ~ 70°C at 10% ~ 90% relative humidity. For indoor use only. Package Dimension 70 x 40 x 110 mm Package Includes 1.ezJack-2R 2.device Quick Installation Guide 3.LAN cable
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Price
$28.95$28.95 $28.95$28.95 $69.56$69.56 $88.95$88.95 $92.95$92.95 $115.95$115.95
Display
OLED OLED OLED OLED LED Indicators LED Indicators
Outlet Type
1x DC 5521 1x Type-C / Micro USB 2x Terminal Block 2x NEMA 5-15 1x NEMA 5-15 2x NEMA 5-15
Electrical Rating
DC 5~12V 1.5A MAX 18W DC 5V/3A, 9V/2A, 12V/1.5A, 20V/1A, PD (5V/3A), QC3.0 Pass-Thru MAX 20W DC 9V~48V 2A MAX 96W AC 125V, 50/60Hz, 2.5A MAX 275W AC 100V-240V, 50/60Hz, 10A MAX 2400W AC 100V-240V, 50/60Hz, 10A MAX 2400W
Connectivity
WiFi WiFi Ethernet & WiFi Ethernet & WiFi Ethernet & WiFi Ethernet
Output Metering
Voltage & Current Meter Voltage & Current Meter Voltage & Current Meter no data
no data
no data
APP Control
✓
✓
✓
✓
✓
✓
Web Portal Control
✓
✓
✓
✓
✓
✓
RESTful API Control
no data
no data
✓
✓
✓
✓

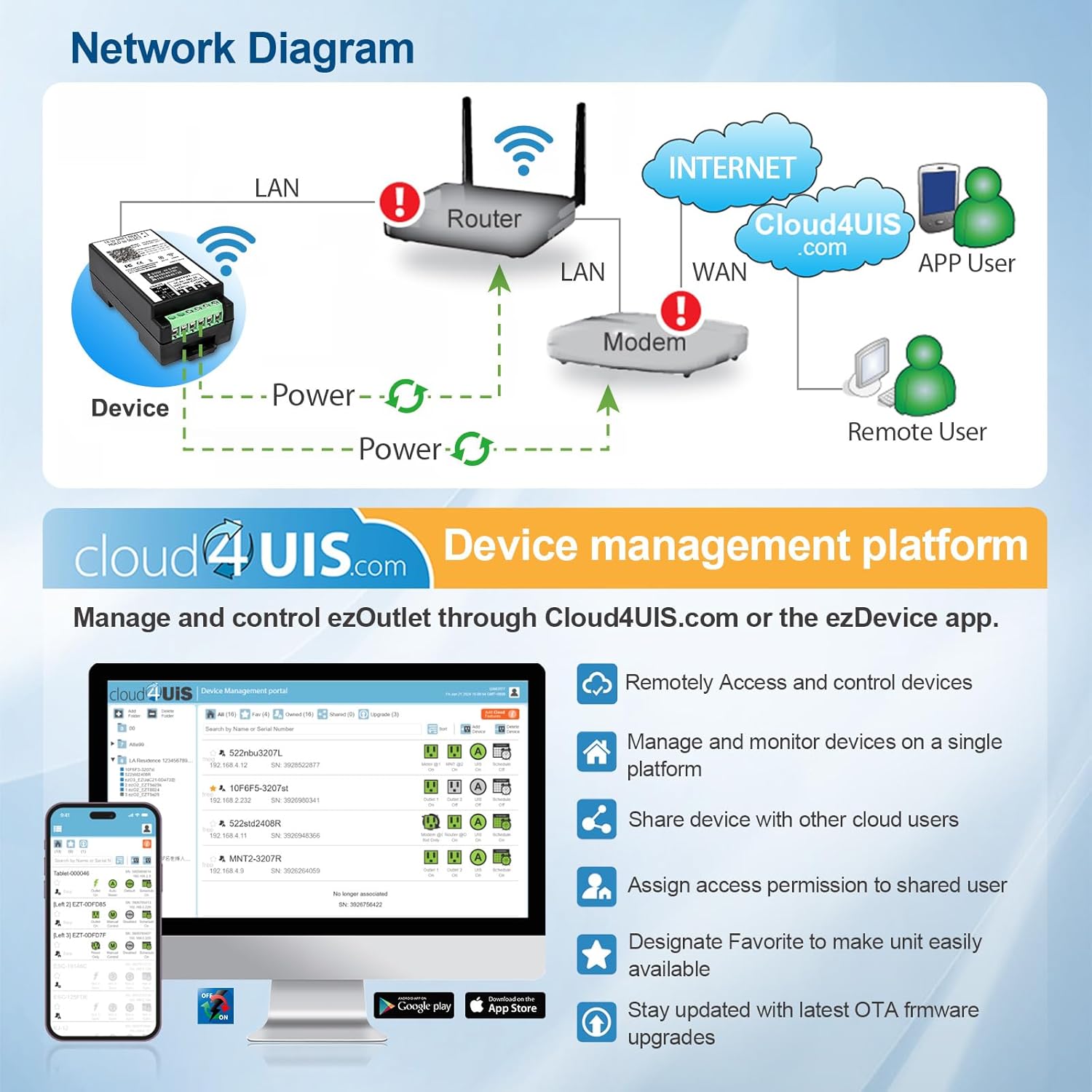

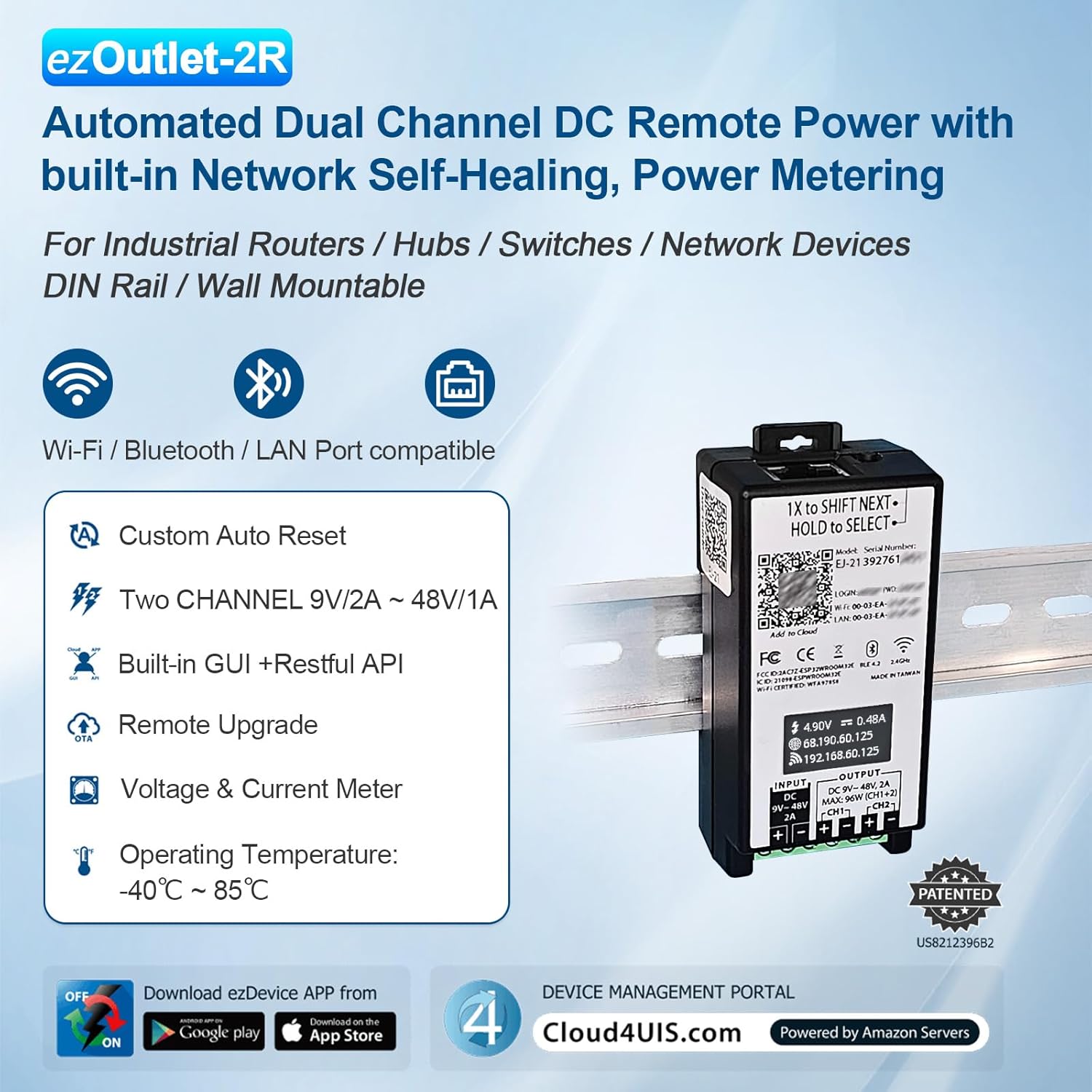

DUAL CHANNEL CONTROL: Features two individually controllable DC channels (9V-48V, 2A) accessible via LAN or Cloud, perfect for managing multiple network devices simultaneously
SMART AUTO-RESET: Continuously monitors network connectivity and automatically resets devices when connection is lost, reducing manual maintenance needs
VERSATILE CONNECTIVITY: Equipped with Ethernet, 2.4GHz Wi-Fi, and Bluetooth v4.2 BLE for flexible installation options and remote management capabilities
MONITORING FEATURES: Built-in voltage and current meter for each channel allows precise power consumption tracking, with an informative OLED display
MOUNTING OPTIONS: Designed for DIN rail installation in panels, control boxes, or wall mounts, with operating temperature range of -45°C to 85°C
APP & CLOUD SUPPORT: Compatible with iOS and Android via the ezDevice App or Cloud4UIS.com for remote operation.
