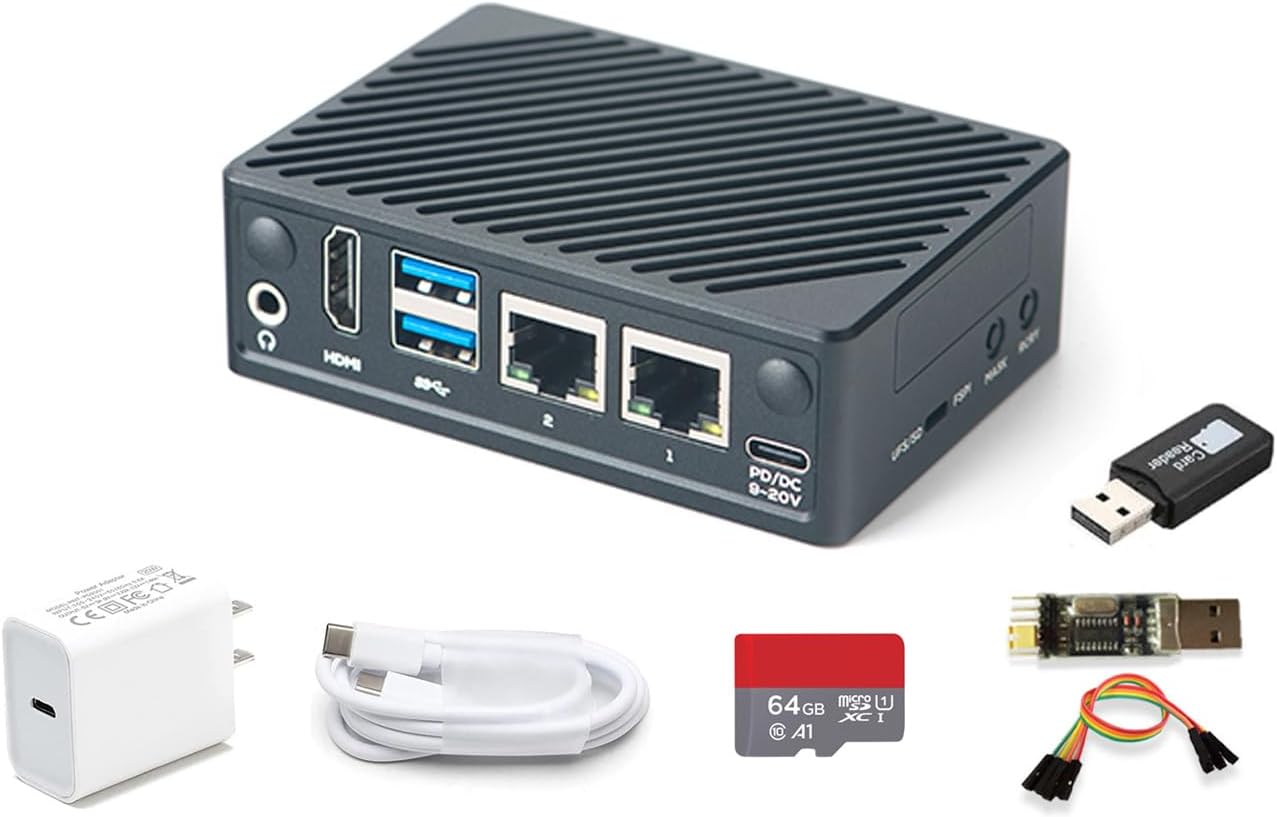

FriendlyElec Nanopi M5 Portable Mini Router OpenWRT – LPDDR5 8GB/16GB RAM 6TOPS NPU, RK3576 SoC with Al Model, Dual Gbps Ethernet for IoT NAS Smart Gateway (with WiFi Module, 8GB, TF Card Kit)

Product description

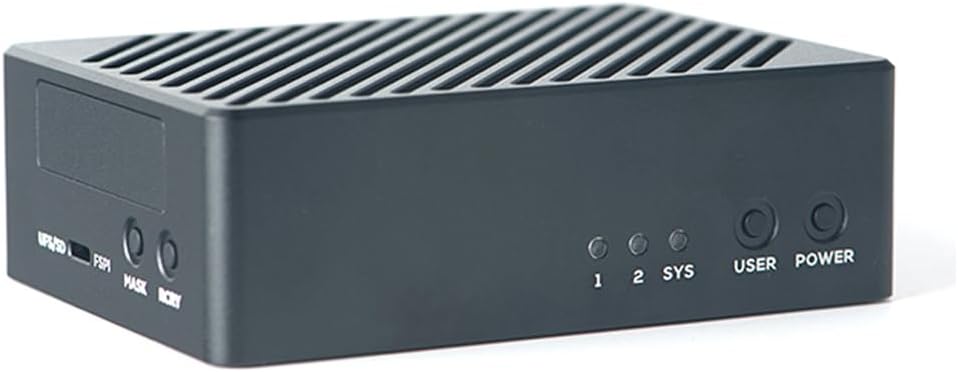

FriendlyElec Nanopi M5 Portable Mini Router

The NanoPi M5 mini router is an open-sourced mini smart gateway device, designed and developed by FriendlyElec.

It is based on Rockchip RK3576 SoC, with 32-bits LPDDR4X/LPDDR5 RAM and UFS 2.0 storage(optional).

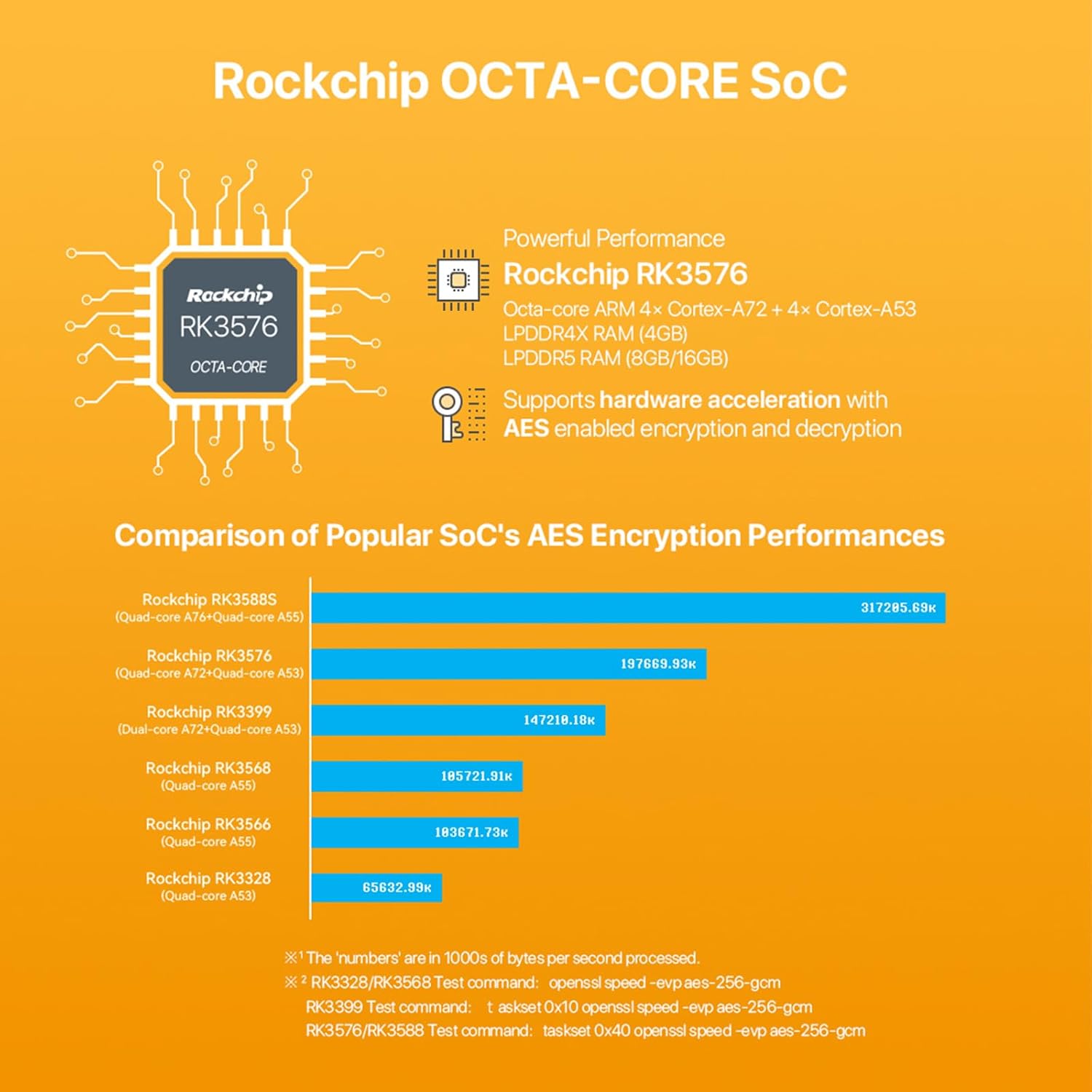

The RK3576 is an 8-core 64-bit processor featuring a powerful architecture with 4x ARM Cortex-A72 cores and 4x ARM Cortex-A53 cores.

It is equipped with an ARM Mali G52 MC3 GPU and 6 TOPS NPU.

LPDDR4X/LPDDR5 RAM

FriendlyElec Nanopi M5 Portable Mini Router

NanoPi M5 is an open source mini single board computer device designed and developed by FriendlyElec

Based on RK3576

RK3576 is a high-performance, low-power SoC processor

1 NanoPi M5

2 RK3576

3

4

5

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. FriendlyElec Nanopi M5 Merchant Video

Supports M.2 SDIO Wi-Fi/BT module

Supports M.2 M-Key 2280 NVMe SSD (PCIe 2.1 x1)

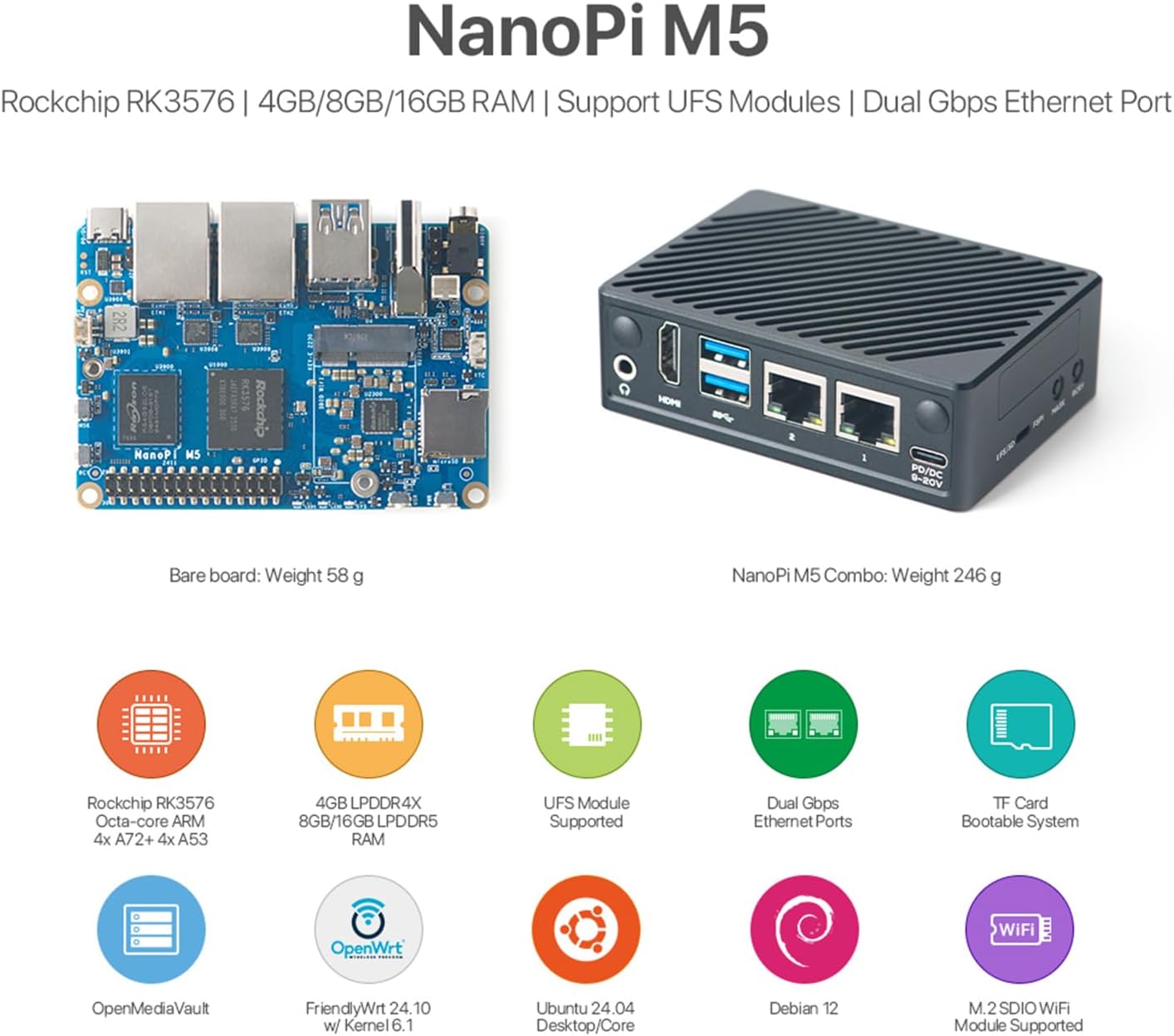

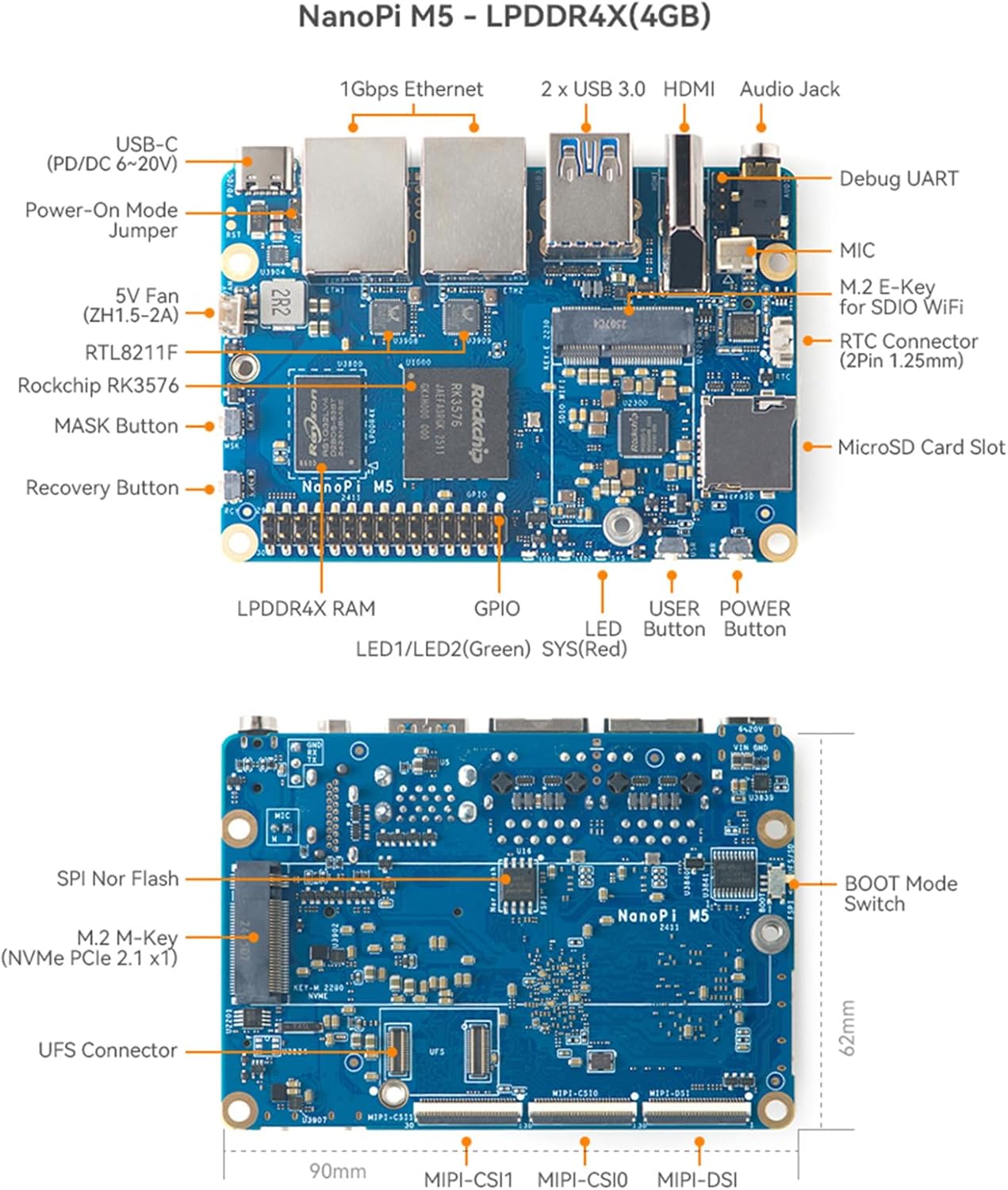

The NanoPi M5 packs rich hardware resources into a compact 90 x 62 mm board.

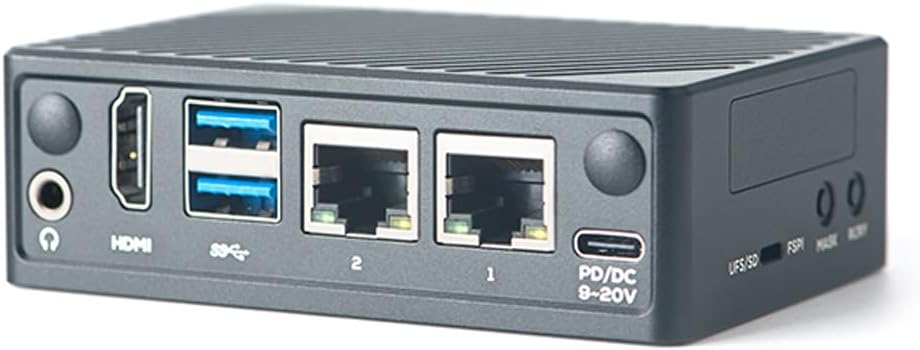

Its extensive connectivity options include an HDMI port, M.2 NVMe, USB 3.0, MIPI-CSI, MIPI-DSI, and an M.2 SDIO socket.

For expansion, a 30-pin header exposes GPIO, I2C, I2S, PWM, and SPI interfaces, facilitating easy secondary development.

Running Android TV 14 Running Ubuntu

[Wireless Mobile Mini Travel Router] The NanoPi M5 mini router is an open-sourced mini smart gateway device, designed and developed by FriendlyElec. It is based on Rockchip RK3576 SoC, with 32-bits LPDDR4X/LPDDR5 RAM and UFS 2.0 storage(optional). The RK3576 is an 8-core 64-bit processor featuring a powerful architecture with 4x ARM Cortex-A72 cores and 4x ARM Cortex-A53 cores. It is equipped with an ARM Mali G52 MC3 GPU and 6 TOPS NPU.
[Greater Storage and Scalability]] NanoPi M5 Portable Wireless Mini Router onboard 4GB LPDDR4X/ 8GB 16GB LPDDR5 RAM. On-Board 16MB SPI Nor flash Supports microSD up to UHS-I Supports UFS 2.0 flash module. Supports M.2 M-Key 2280 NVMe SSD (PCIe 2.1 x1). 2x one Gbps Ethernet ports with RTL8211F PHY chips Supports M.2 SDIO Wi-Fi/BT module. 2x USB 3.2 Gen 1 Type-A ports. 30-Pin 2.54mm GPIO header. 2x 4-Lane MIPI CSI-2 D-PHY v1.2 interfaces.
[Al Model Performance] Nanopi M5 Mini Router support Al Model Performance and Resource Usage on. Supporting Local Deployment & Running of Al Models, such as Llama-3.2, Chat GLM3, Deep Seek R1, Int ern LM2, Qwen 2.5 and so on mainstream AI inference modeling platforms.It is very suitable for enterprise customers to customize the development of mini machine vision systems with multiple network ports.
[Open Source and Programmable] NanoPi M5 computer mini wifi router can support FriendlyWrt OS, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home office gateways and more. NanoPi M5 mini wifi router can support external USB wifi adapter. Simultaneous dual band and Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing.
[Wide Range of Operating Systems] NanoPi M5 Portable Wireless Mini Router running Android 14 Tablet, Android 14 TV, Debian 11 Desktop, FriendlyWrt 21.02, FriendlyWrt 23.05, FriendlyWrt 24.10, OpenMediaVault OS System. Also support Proxmox VE, Ubuntu 20.04 Desktop, Ubuntu 24.04 Core and Ubuntu 24.04 Desktop. Kernel version: Linux-6.1-LTS and U-boot-2017.09.It is also fully compatible with headless systems.
[8K Video Decoders and Encoders] NanoPi M5 Portable Mini VPN Router supports advanced video decoding and encoding, including 8K at 30fps and 4K at 120fps decoding (H.265/HEVC, VP9, AVS2, and AV1), as well as 4K at 60fps decoding (H.264/AVC) and 4K at 60fps encoding (H.265/HEVC and H.264/AVC). This makes it an ideal solution for high-performance multimedia and AI applications.
[USER MANUAL]WiKi:”wiki.friendlyelec.com/wiki/index.php/NanoPi_M5″. All after-sales questions please click “WayPonDEV” store and ask the question. Or please leave the message to “wpd#youyeetoo&com (#—>@,&—>.)”.
