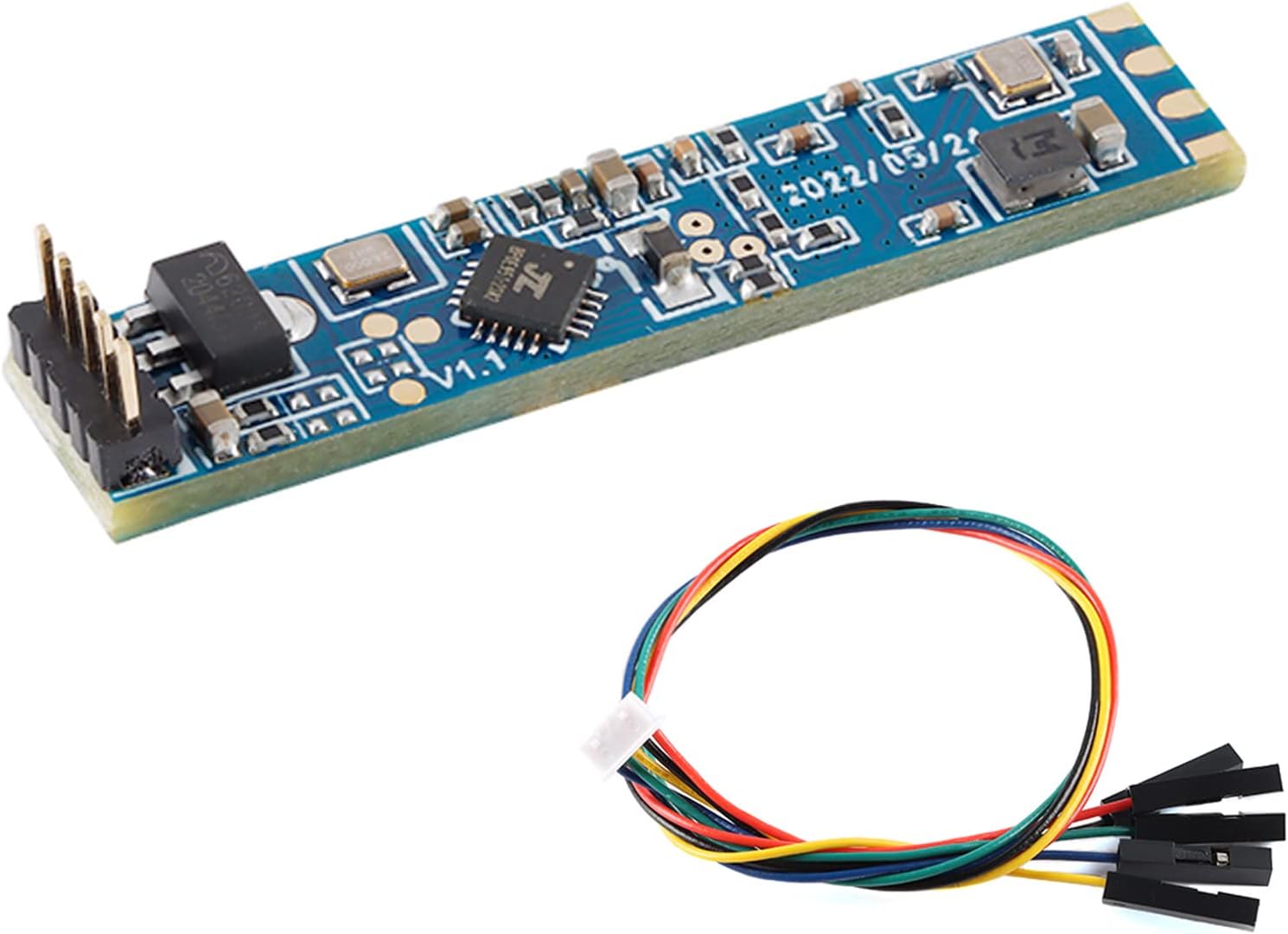

HLK-LD2410 24g Smart Human Presence Sensor Radar Module with 1.25 to 2.54mm Dupont Cable 24GHz LD2410 Millimeter Wave Motion Switch Sensor Module with Pins
$9.95
Product Description
We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer,hobbyist, student, or professional.Our development boards and components are here to help.
Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs.
At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer. Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
The farthest sensing distance is up to 5 meters, the detection angle is large, the coverage range is up to 60 degrees, the accurate identification within the interval is supported, the sensing range is divided, and the interference meter wave sensor module outside the interval is shielded.In addition to sensitive to the movement of the human body, the static, micro-motion, sitting and lying human body that cannot be identified by the traditional scheme can also be sensitively sensedIt has good environmental adaptability, and the induction effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuationGood shell penetration, can be hidden in the shell inside the work, no need to open holes on the surface of the product, improve the product appearanceFlexible configuration of the farthest sensing distance and the sensitivity of each distance on the door, to achieve flexible and fine personalized configuration
Product Description
The LD2410 is the 1 highly sensitive 24GHz human presence sensing module. Its working principle is to use FMCW frequency modulation continuous wave to detect the human target in the set space, combined with radar signal processing and accurate human body sensing algorithm, to achieve high sensitivity human body presence state sensing, can identify the human body in motion and static state, and can calculate the distance of the target and other auxiliary information.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area and output the detection results in real time. The farthest sensing distance is up to 5 meters, and the distance resolution is 0.75m. It provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity and unmanned delay time in different intervals to adapt to different specific application requirements.
Support GPIO and UART output, can be flexibly applied to different intelligent scenarios and end products.
The LD2410 module directly outputs the detected target state (high level for some and low level for no one) through an IO pin. At the same time, it can also output the detection result data according to the specified protocol through the serial port. The serial port output data contains the target state and distance auxiliary information, etc. The user can flexibly use it according to the specific application scenario.
The power supply voltage of the module is 5V, and the power supply capacity of the input power supply is required to be greater than 200mA.
The module IO output level is 3.3V. The default baud rate of the serial port is 256000, with 1 stop bit and no parity bit.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Price
$12.95$12.95 $9.95$9.95 $16.95$16.95 $26.95$26.95 $14.95$14.95
model
✓
✓
✓
✓
✓
Package Dimensions : 7.05 x 4.65 x 0.28 inches; 0.32 ounces
Date First Available : April 21, 2023
Manufacturer : JESSINIE
ASIN : B0C35X73BV
Country of Origin : China
The farthest sensing distance is up to 5 meters, the detection angle is large, the coverage range is up to 60 degrees, the accurate identification within the interval is supported, the sensing range is divided, and the interference meter wave sensor module outside the interval is shielded.
In addition to sensitive to the movement of the human body, the static, micro-motion, sitting and lying human body that cannot be identified by the traditional scheme can also be sensitively sensed
It has good environmental adaptability, and the induction effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuation
Good shell penetration, can be hidden in the shell inside the work, no need to open holes on the surface of the product, improve the product appearance
Flexible configuration of the farthest sensing distance and the sensitivity of each distance on the door, to achieve flexible and fine personalized configuration
