KONLEN Tuya WiFi Temperature Sensor Thermometer Controller Freezer Fridge Cooling Heating Thermostat Aquarium Incubator Temp Logger Smart Life Temp Alarm Remote Home Monitoring

Product Description

Tuya Smart WIFI Temperature Controller

It is a WIFI digital temperature controller that can be set through the APP or manual buttons to realize temperature monitoring, heating or cooling control, and push alarm messages of lower/upper temperature limit. Users can also check the device status and historical temperature curve chart from App log. With time period temperature control function, it is good for Energy saving, consumption reduction and electricity usage staggering.

The product is suitable for various commercial and industrial occasions, such as HVAC systems, thermal processes, boilers, breeding, aquaculture, incubation, intelligent electromechanical equipment and other heating/cooling control systems.

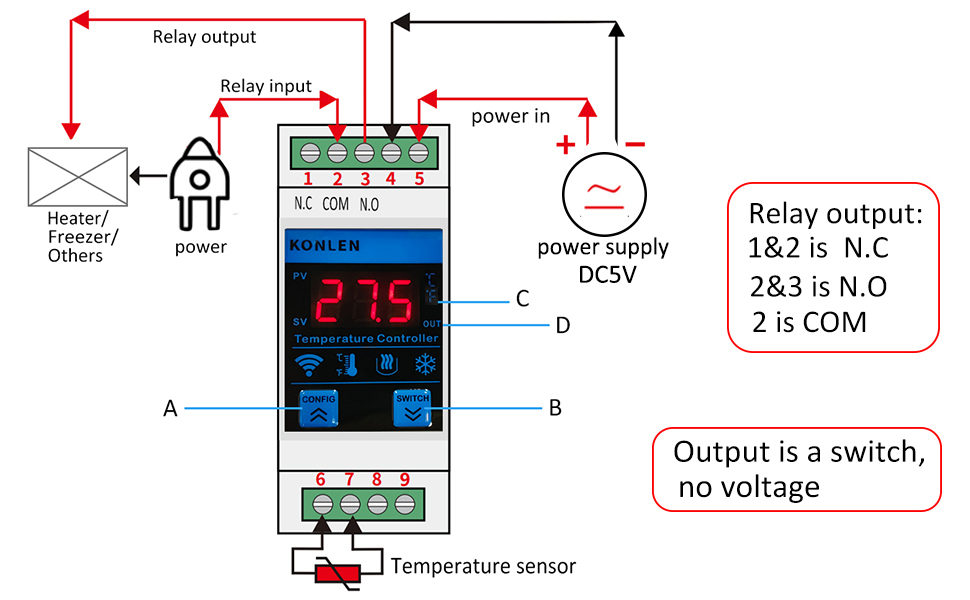

A: WIFI configuration button （ WIFI 2.4GHZ b/g/n connection, not support 5G WIFI )

B: Turn on/turn off button:

The manual switch is only effective when the current temperature is between the preset start and stop temperature value.

C：Display real time temperature (Fahrenheit ℉)

D: Status LED

1,2, 3: 1. Normal Closed, 2. COM, 3.Normal Open

Relay output 1 & 2 is N.C

Relay output 2 & 3 is N.O

Note: The relay output is just a switch, no voltage output.

The current capacity of relay contact is 10A max.

4, 5: Working power input: DC5V，

Power supply: DC5V power adapter with USB cable (included in package)

6, 7: Connect with temperature sensor

There is No distinction of positive and negative

8, 9: No use

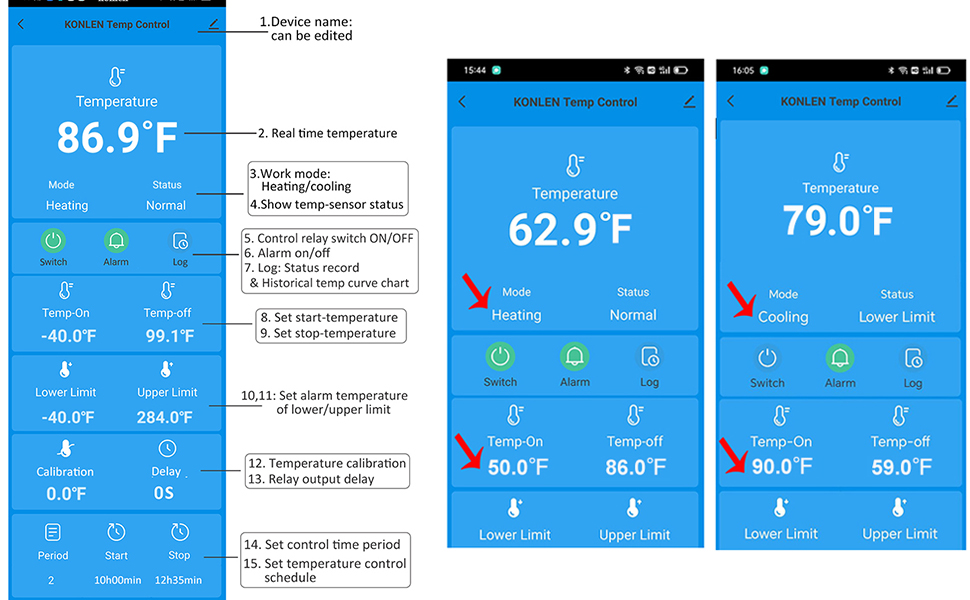

App Instruction

1. Device name: can be edited.

2. Display real time temperature, temperature unit: Fahrenheit ℉

3. Working mode: heating or cooling，

4. Show temperature sensor status.

5. Control relay switch on/off:

Note: The manual switch of App is only effective when the current temperature is between the preset start and stop-temperature value.

6. Alarm: Enable/Disable alarm function of upper/lower temperature limit.

7. Log: can inquiry the history record of device power on/off status and alarm messages, and historical temperature curve chart.

8/9: Set start-temperature and stop temperature.

10/11: Set alarm temperature of upper / lower limit.

12. Temperature calibration，

13. Relay output delay: set time delay of relay starting,

14/15: Support to set 9 groups of time-period temperature control schedule.

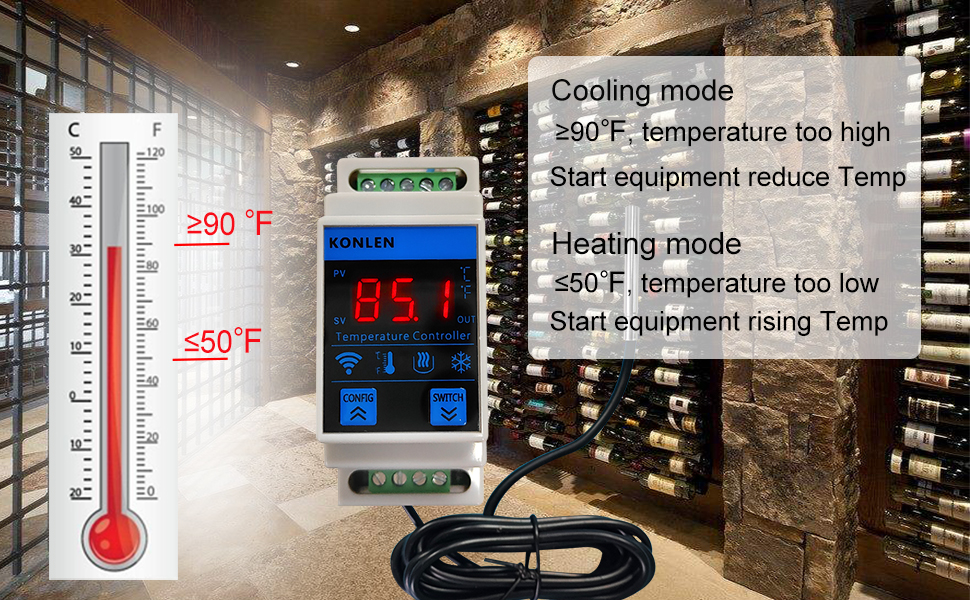

Preset Heating or Cooling working mode:

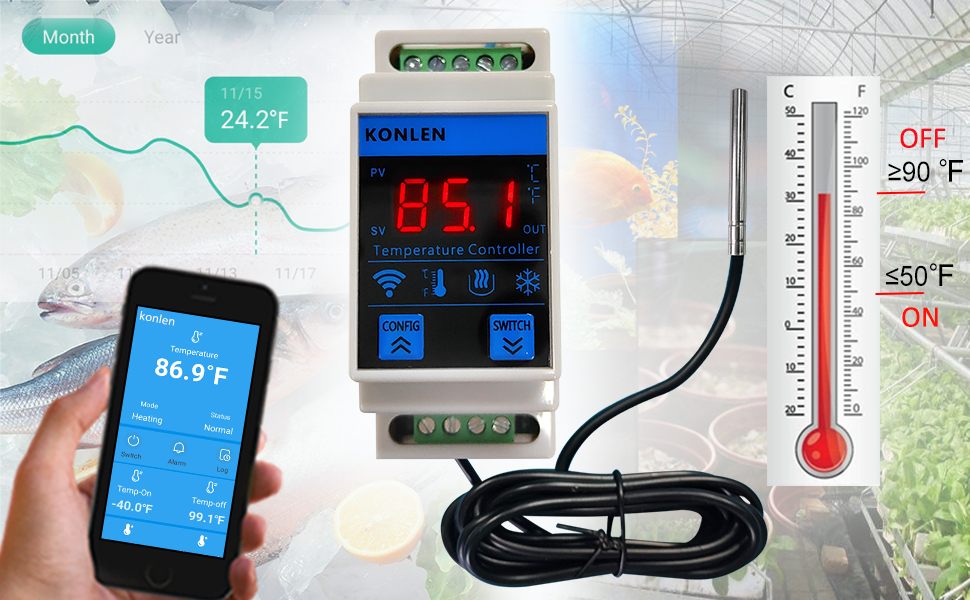

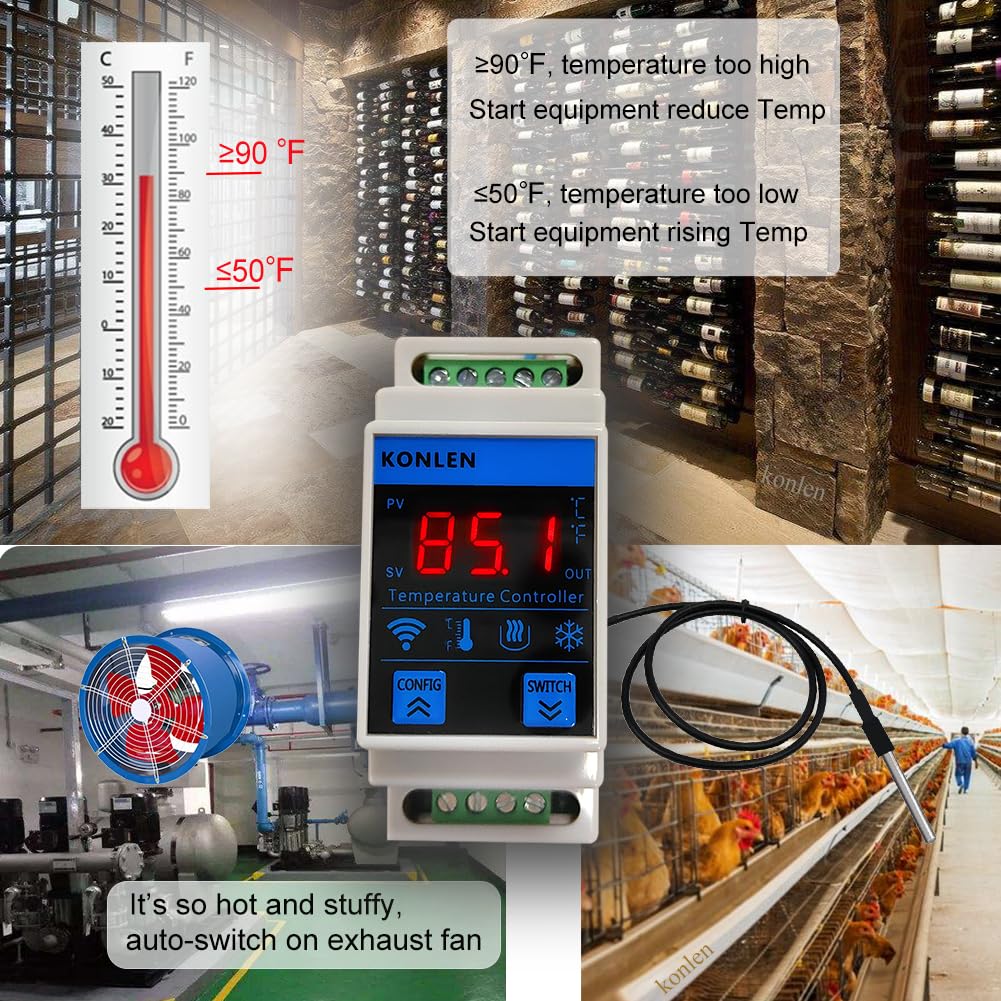

When the preset start temperature is higher than stop value, it is cooling mode. For example, xx ≥90 ℉, start the cooling equipment; xx ≤59℉, stop it.

When the preset start temperature is lower than stop vale, it is heating mode. For example, xx ≤50℉, start the heating equipment; xx ≥86℉, stop it.

Set upper and Lower limit value of temperature alarm

For example: Set the temperature range 30℉~65℉. When the temperature in house is within the temperature range , the controller will work normal . If the temperature is lower than 30℉ or higher than 65℉, it will push alarm notification to users’ smart phone via APP.

Note: Notification authority and Alarm function must be enabled.

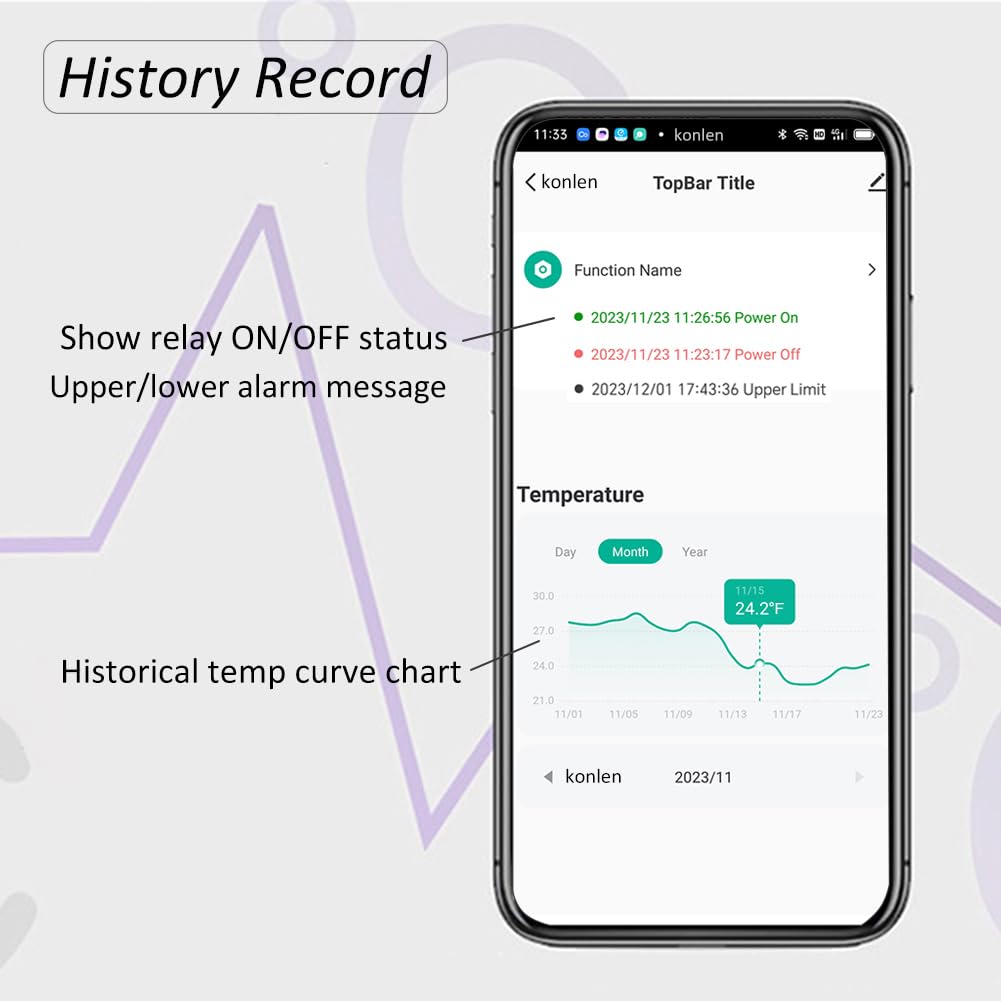

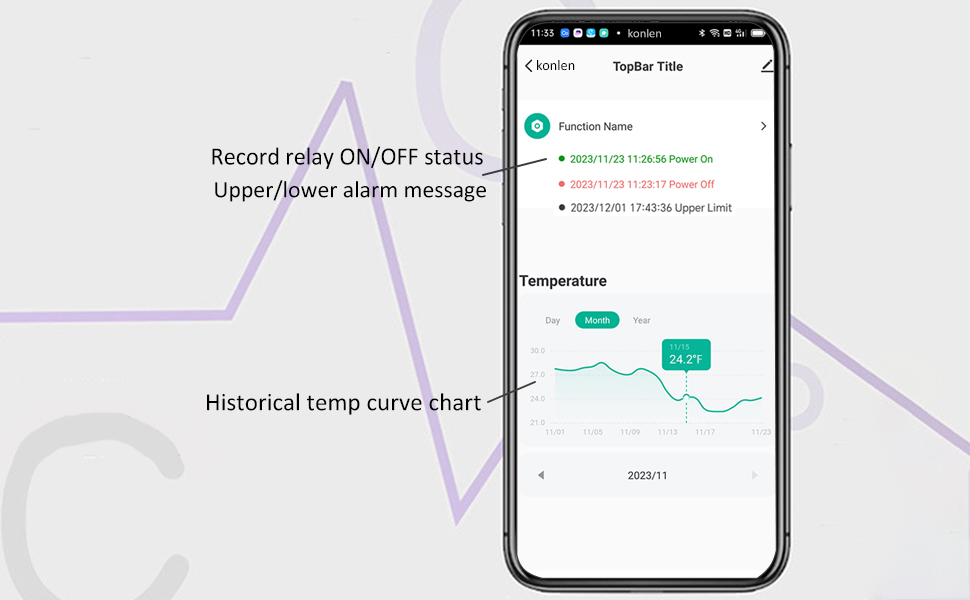

History Record

Users can inquiry the history record of device power on/off status and alarm messages, and historical temperature curve chart from App log.

Packing List: one temperature controller, one temperature sensor, one DC5V power adapter, one USB cable

Specification:

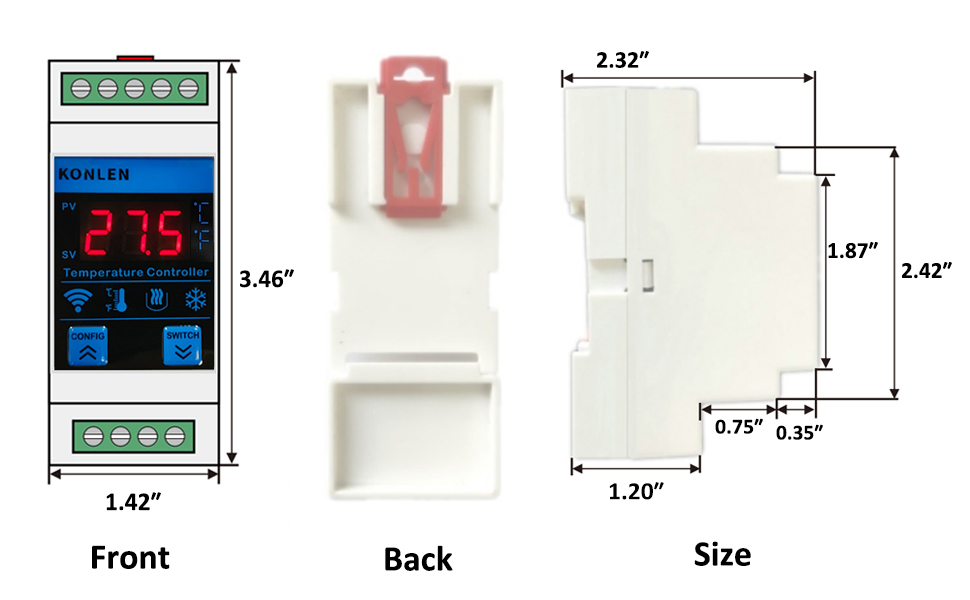

Product Size: 3.46in x 1.42in x 2.32in

Power supply: DC5V

Temperature sensor cable with probe: 2 meters ( 6.56 feet ).

Detecting temperature range: -40℉ to +284℉

Measurement error: ±2℉ ,

Output: 1 relay output (normal open or normal closed)

Relay lifespan: On/Off about 100,000 times.

The contact current capacity is 10A， inductive load 2A，can control 2000W resistive load or 400W motor or water pump.

Need larger load, please add AC contactor, or it will cause burning danger.

Device working environment : -2℉〜140℉

Tip:

1.The temperature sensor with 2 meters / 6.56 feet cable is waterproof, can be used for indoor and outdoor detection, but the controller is not waterproof, it must be located indoor.

2. If you want the probe with longer cable, users can extend it to be about 30 meters ( 100 feet ) long Max.

Product Dimensions ‏ : ‎ 3.46 x 1.42 x 2.32 inches; 6.72 ounces
Item model number ‏ : ‎ KL-WT2-T
Date First Available ‏ : ‎ June 21, 2024
Manufacturer ‏ : ‎ Shenzhen Konlen Technology Limited
ASIN ‏ : ‎ B0D7QHD9JQ
Best Sellers Rank: #1,039,231 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden) #870 in Indoor Thermometers

It is a WIFI digital temperature controller that can be set through the APP or manual buttons to realize temperature monitoring, heating or cooling control, and push alarm messages of lower/upper temperature limit. Users can also check the device status and historical temperature curve chart from App log. With time period temperature control function, it is good for Energy saving, consumption reduction and electricity usage staggering. Note: In the video example, the product temperature unit is degrees Celsius. But please don’t worry, the actual product you will receive will be Fahrenheit degrees.
Application: The product is suitable for various commercial and industrial occasions, such as HVAC systems, thermal processes, boilers, breeding, aquaculture, incubation, intelligent electromechanical equipment and other heating/cooling control systems.
Temperature Control and Monitoring: Controller and App can display real-time temperature at same time. It will control to turn on/off equipment (heater/freezer/others) when the current temperature reaches to the preset temperature-start/stop value. With the feature, it can realize the heating or cooling control.
Set upper and Lower limit value of temperature alarm, real-time push alarm notification to users’ smart phone.
History record: Users can also check the device status and historical temperature curve chart from App log.
Time-period Temperature Control: With the function, it provides users the best solution for Energy saving, consumption reduction and electricity usage staggering. After set the work mode, cooling or heating, users can add time-period control as needed. Support to max set 9 groups of time periods. All the setting will only be activated within the control time period.
