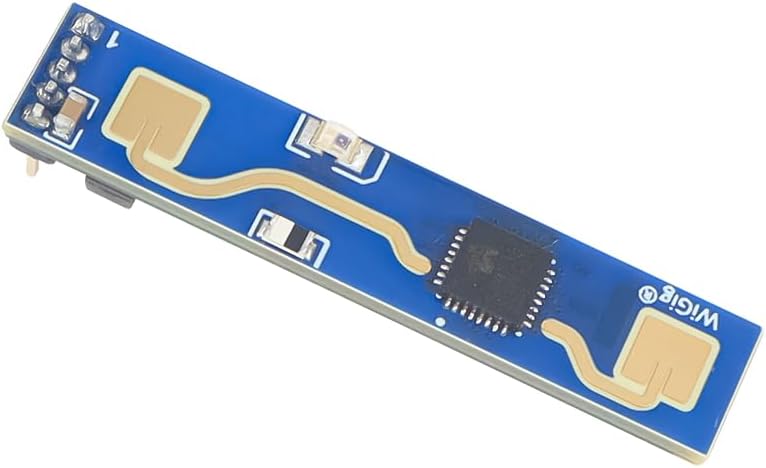

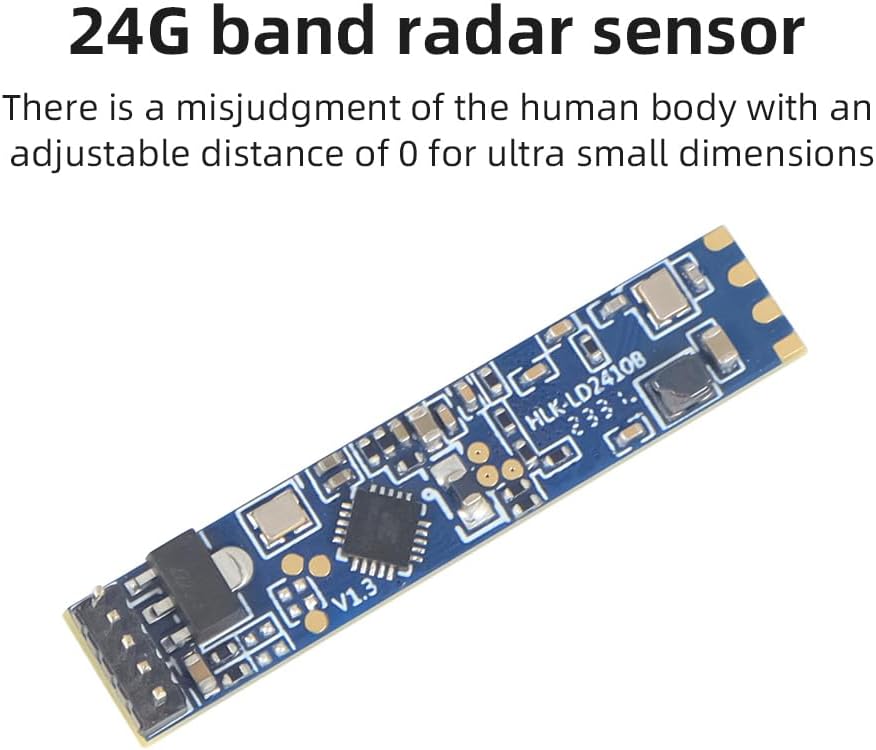

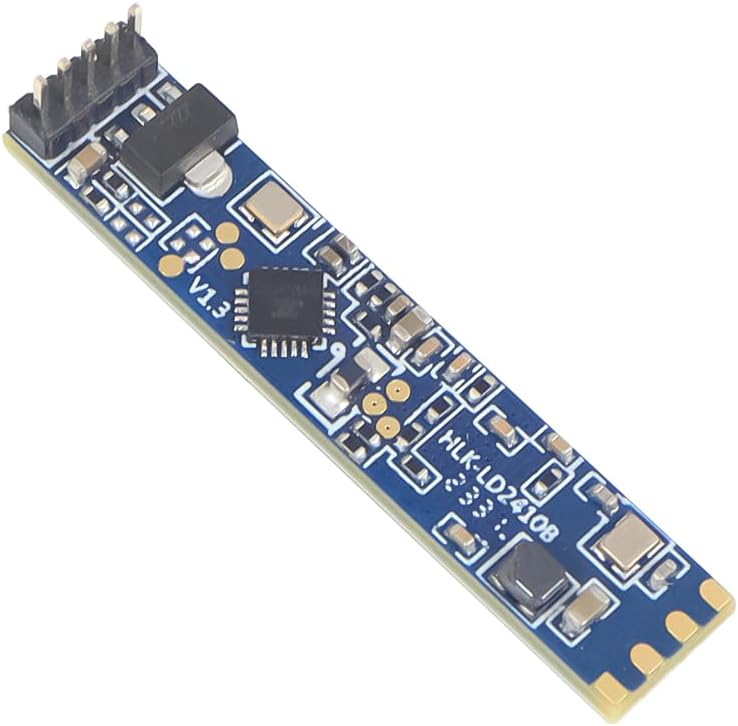

LD2410B 24G Smart Human Presence Sensor Ra¡¤DAR Switch Module Millimeter Wave Sensor Supports GPIO and UART Outputs (Combo B)

LD2410B 24G Smart Human Presence Sensor Ra¡¤dar Switch Module Millimeter Wave Sensor Supports GPIO and UART Outputs

Package Option:
Module Only:
LD2410B Module *1
Combo A:
LD2410B Module *1+SH1.27mm5P to Du¡¤Pont-Compatible 5Pin terminal cable 20cm*1
Combo B:
LD2410B Module *1+SH1.27mm5P to Du¡¤Pont-Compatible 5Pin terminal cable 20cm*1+CH340 Serial Board *1

Product Description
The detection results are output in real time. The maximum sensing distance is up to 6 meters with a resolution of 0.75M.
Supports GPIO and UART outputs, plug and play. It can be flexibly applied to different intelligent scenes and terminal products.

Product Parameters:
Product Model:LD2401
Interface£ºGPIO/1 UART/1
Frequency Band: 24GHZ~ 24.25GHZ
Operating voltage: 5V (support 5V12V voltage supply)
Detection distance: 0.75M~6M, adjustable
Detection Angle£º¡À60¡ã
Sweep bandwidth: 250MHZ
Distance resolution £º0.75M
External size: 7mmx35 mm
Hardware 5 pcs pin holes reserved (not including pins)
Pin holes are 0.6mm in diameter and 1.27mm between pins.

Product Advantage
1. Good transparency of the outer casing, can be hidden inside the outer casing, no need to open holes on the surface of the product to improve the aesthetics of the product.

2. Flexible configuration of the maximum sensing distance and the sensitivity of each distance door to achieve flexible and fine personalized configuration.
