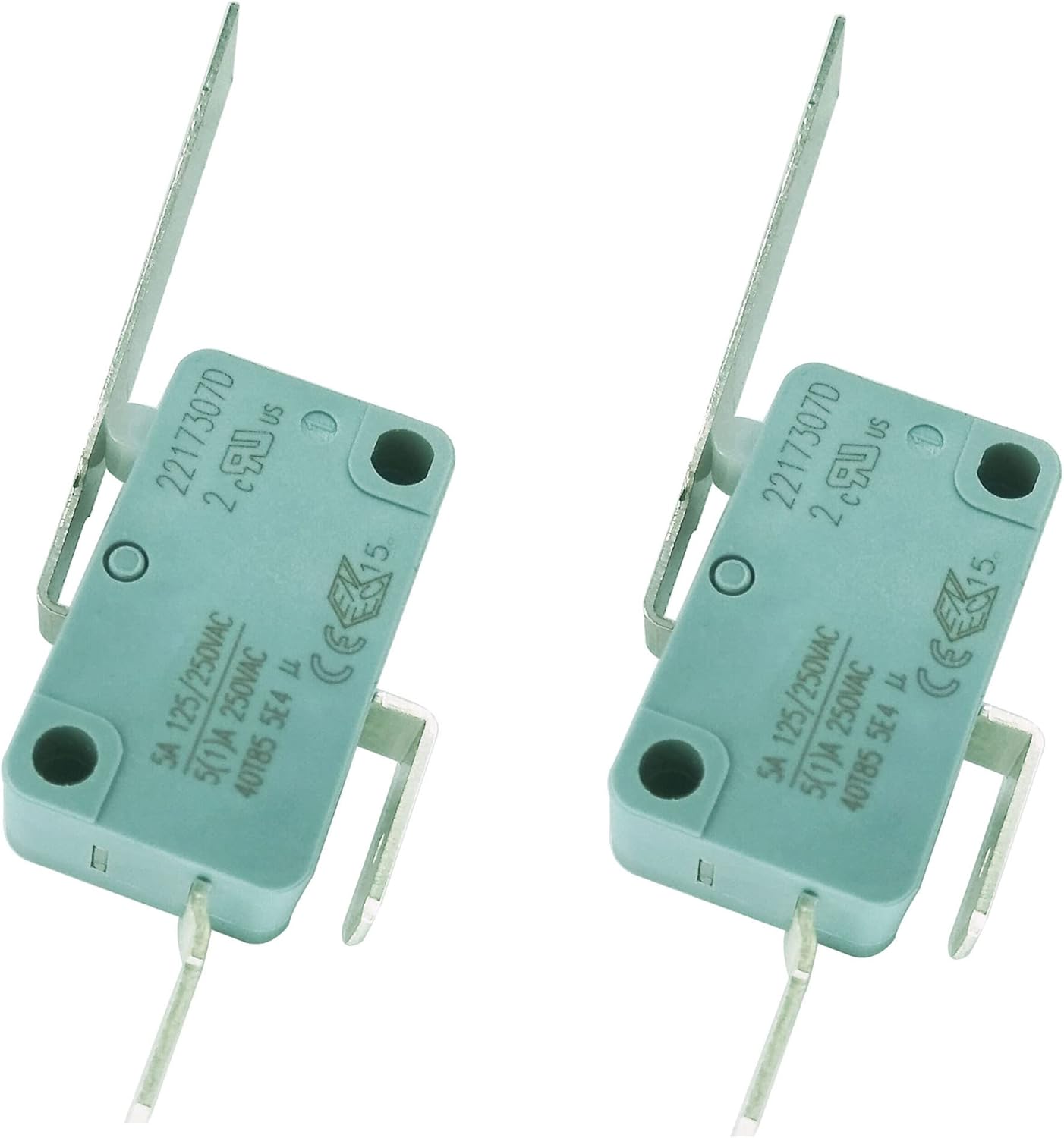

LONYE WD21X479 Dishwasher Float Switch Replacement for GE Hotpoint Kenmore Dishwasher WD21X0479 271444 AH260235 AP2039496 EA260235 PS260235(Pack of 2)

Product Description

Description:

Float switch WD21X479 is found inside the dishwasher’s tub, on the bottom. The water filling the dishwasher lifts the float, and when it reaches a certain level, it acts as a trigger for the float switch. The float triggers the float switch to shut off, thereby shutting off the flow of water into the dishwasher. Float switch WD21X479 shuts the water fill valve off if the water level gets too high before the timed fill cycle ends.The most common reasons for replacing the float switch are when the dishwasher overfills with water, though this is more likely the water inlet valve not shutting off properly, or when the dishwasher won’t fill.

Notice: A defective switch may interfere with your dishwasher’s filling, or draining ability.

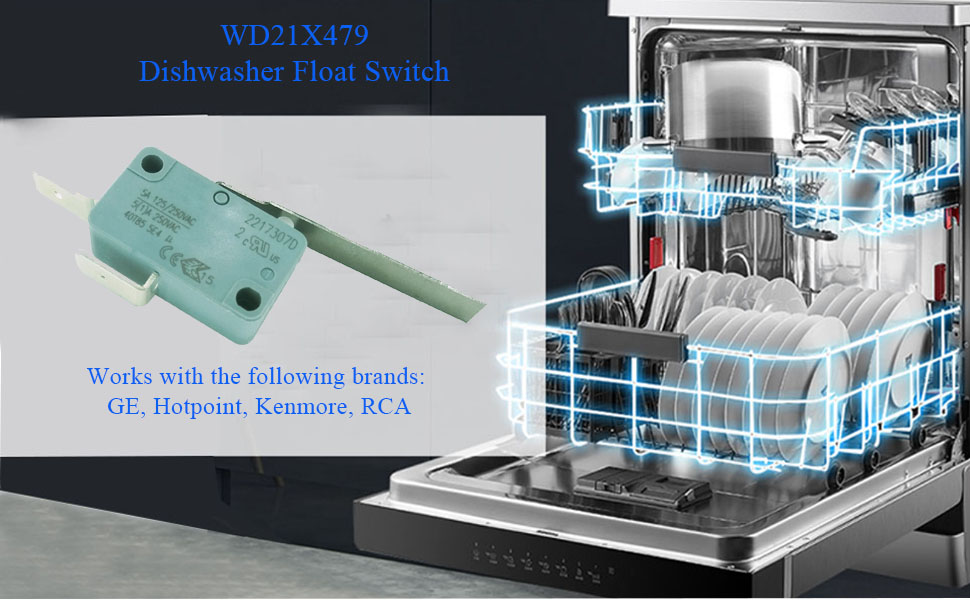

Known as Overfill Control Switch. This float switch, when activated, stops the flow of water into the dishwasher. Works with the following brands: GE, Hotpoint, Kenmore, RCA Works with the following products: Dishwasher, Air Handler This part fixes the following symptoms:

LeakingWill not fill with water.

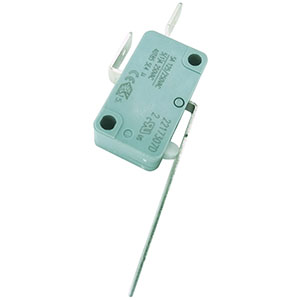

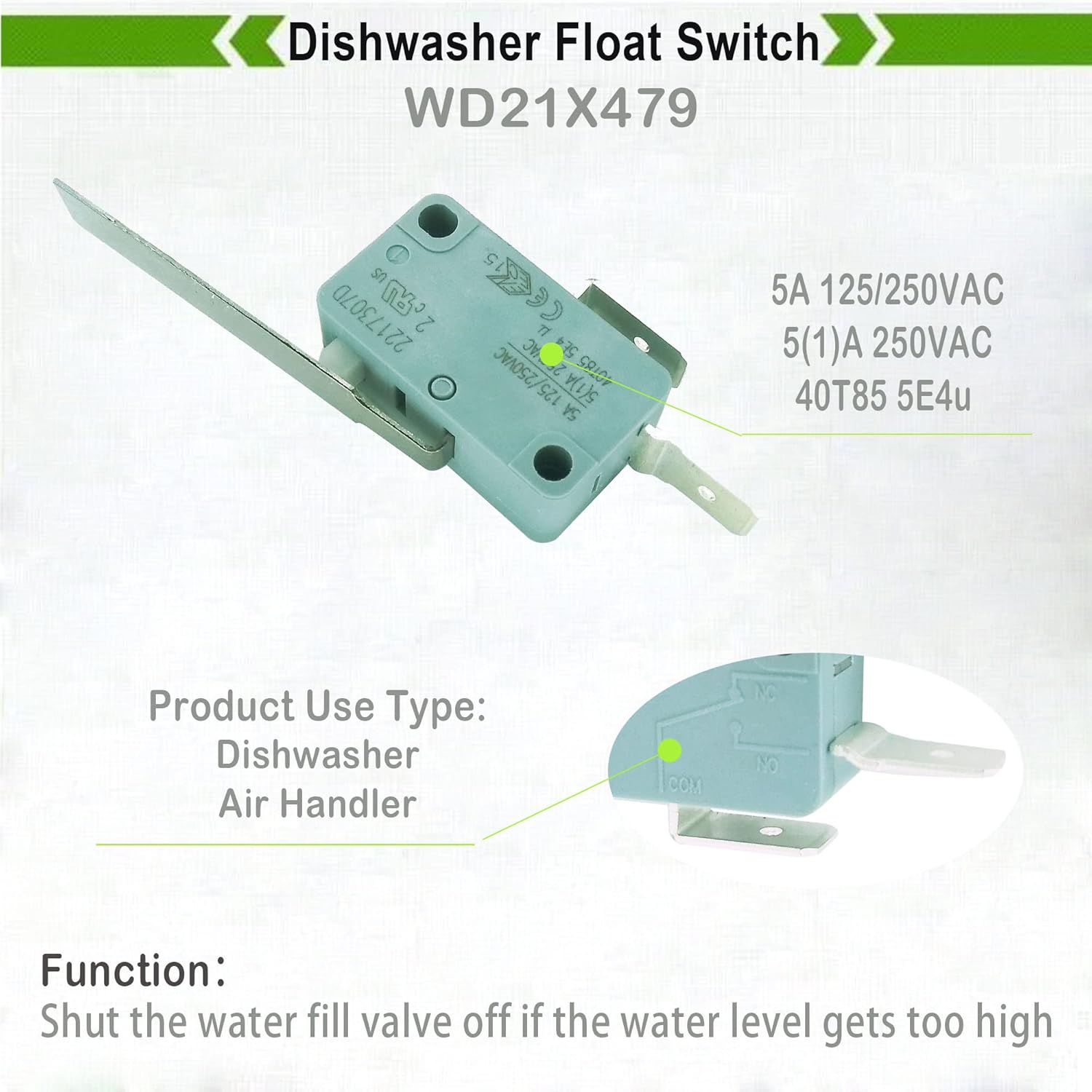

WD21X479 Dishwasher Float Switch WD21X479 Switch Specification:

5A 125/250VACμ 5(1)A 250VAC40T85 5E4 WD21X479 Switch

replaces 271444, AH260235, AP2039496, EA260235, PS260235, WD21X0434, WD21X0479, WD21X0520, WD21X434, WD21X520

The Flood Switch is Compatible With Most GE Dishwashers including:

GSD1000S02 GSD1000T-01 GSD1200P02 GSD1200S02 GSD1200T-01 GSD1200X01 GSD1200X02 GSD2500-01 GSD2500-02 GSD900T-01 GSD900X-01 GSD900X-02 GSD980T-01 GSD980X-01 GSD980X-02 GSD990X-01

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars 5

4.7 out of 5 stars 12

4.4 out of 5 stars 248

4.9 out of 5 stars 6

4.6 out of 5 stars 178

Price

$7.99$7.99 $9.99$9.99 $10.99$10.99 $12.77$12.77 $11.27$11.27

Specification
3(1)A 125/250VACμ 40T125 5E4 3A 125/250VAC 5A 125/250VAC 5(1)A 250VAC 40T85 6(2)A 125/250VAC 6A 30VDC 1/4hp 25T105 0.6A 125VDC 0.3A 250VDC 16A 1/2hp T130 16A 125/250VAC 0.4A 125VDC 0.2A 250VD 3/4hpC

Replace Models
165256, 935359, AH3439096, EA3439096, PS3439096, PS8697040 271444, AH260235, AP2039496, EA260235, PS260235, WD21X0434, WD21X0479, WD21X0520, WD21X434, WD21X520 AP6016738, PS11750031, W10734532, WPW10195039 2313790, AP6989906, EA220803, PS16219431 AP3872949, 1168295, AH1021382, EA1021382, PS1021382.

Compatible Brands
Bosch, Gaggenau, Thermador GE, Hotpoint, Kenmore, RCA Whirlpool, KitchenAid, Maytag, Amana, Jenn-Air, Inglis. LG GE, Hotpoint

Terminal Numbers
3 2 2 2 2

💙Package includes 2 pcs WD21X479 Dishwasher Float Switch
💙WD21X479 switch replaces for 271444, AH260235, AP2039496, EA260235, PS260235, WD21X0434, WD21X0479, WD21X0520, WD21X434, WD21X520.
💙Dishwasher Float switch WD21X479 shuts the water fill valve off if the water level gets too high before the timed fill cycle ends.
💙This switch is compatible with product: Dishwasher, Air Handler
💙This part is compatible with brand：GE, Hotpoint, Kenmore, RCA.
