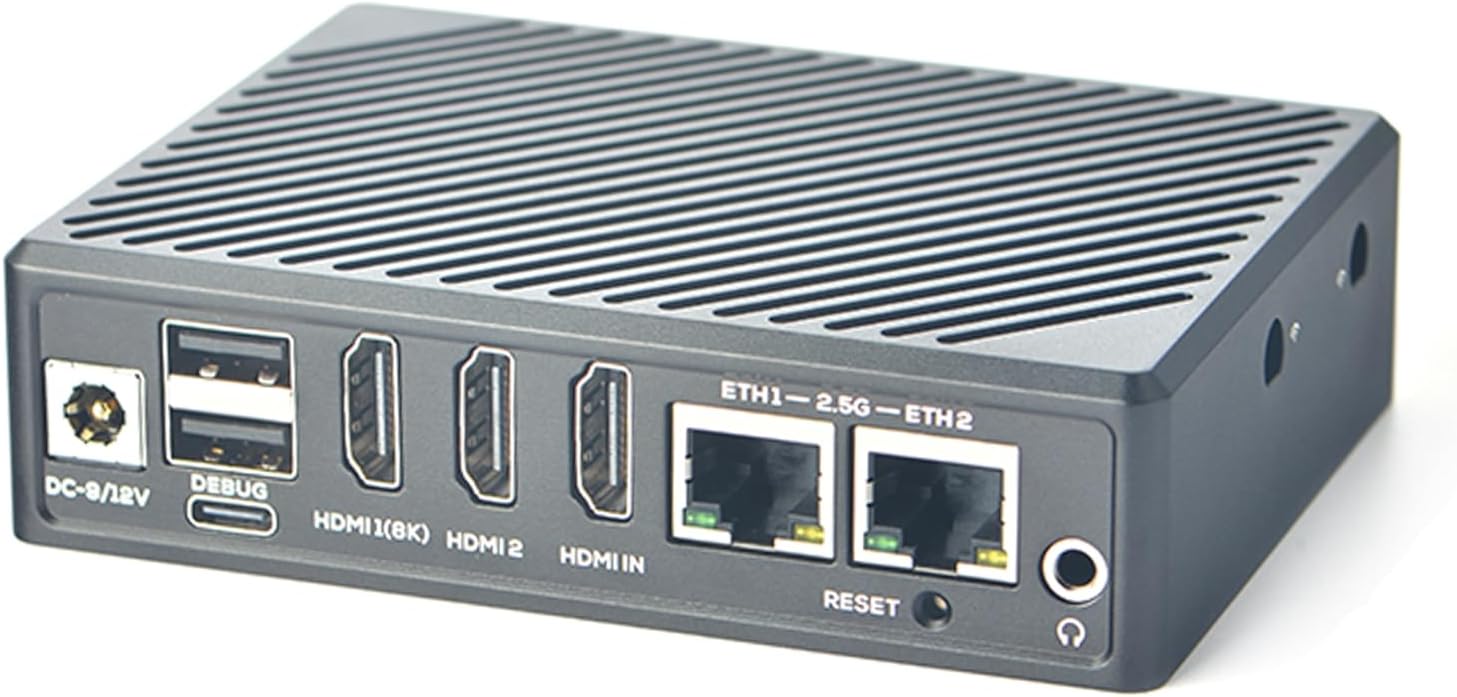

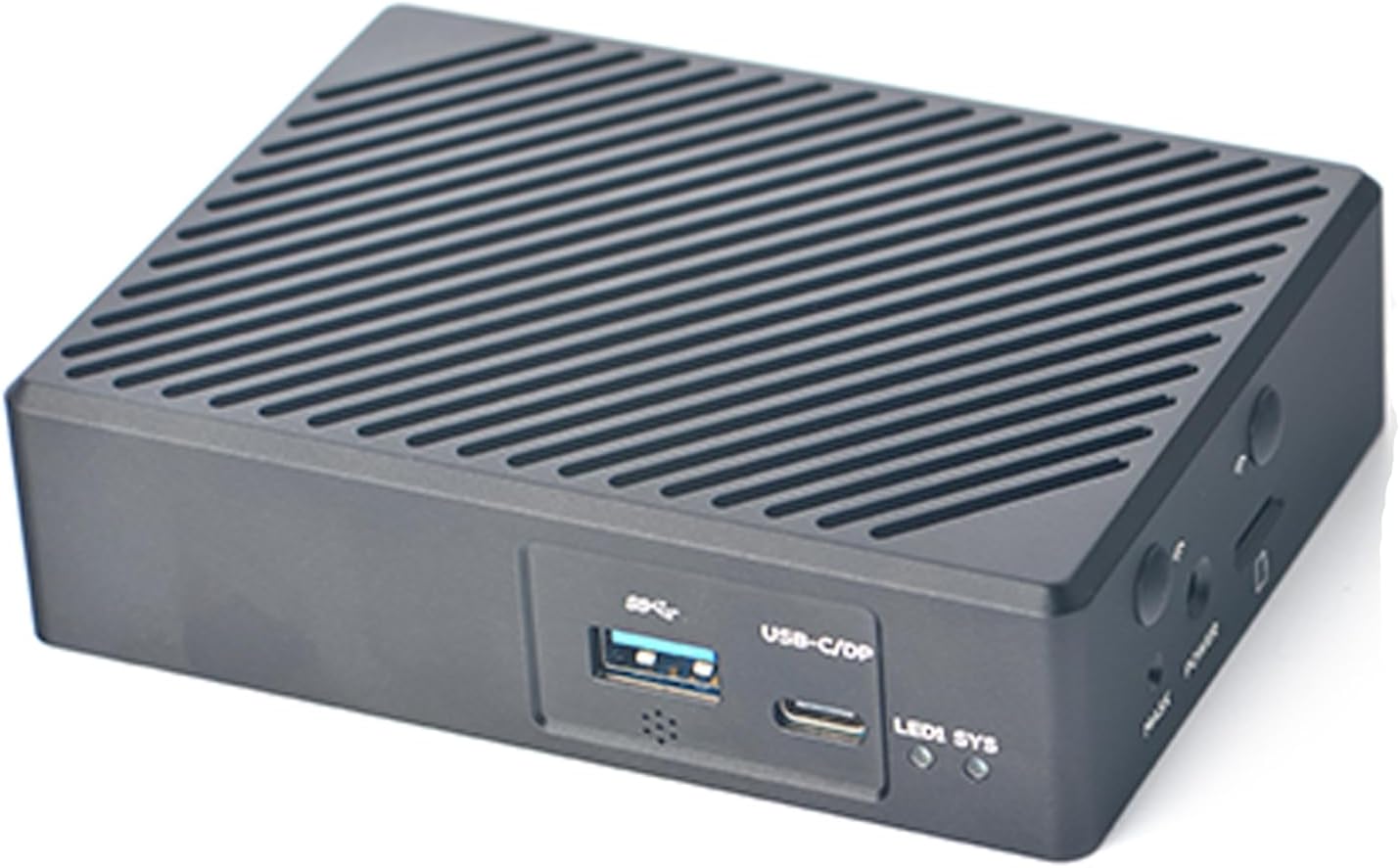

NanoPC-T6 Computer Mini WiFi Router, Rockchip RK3588 Single Board Computer, LPDDR4X 4GB RAM 32GB eMMC 6Tops NPU, Onboard PCle 2.5G Ethernet for Smart Home Office IoT Gateway, Support Debian Ubuntu

Product Description

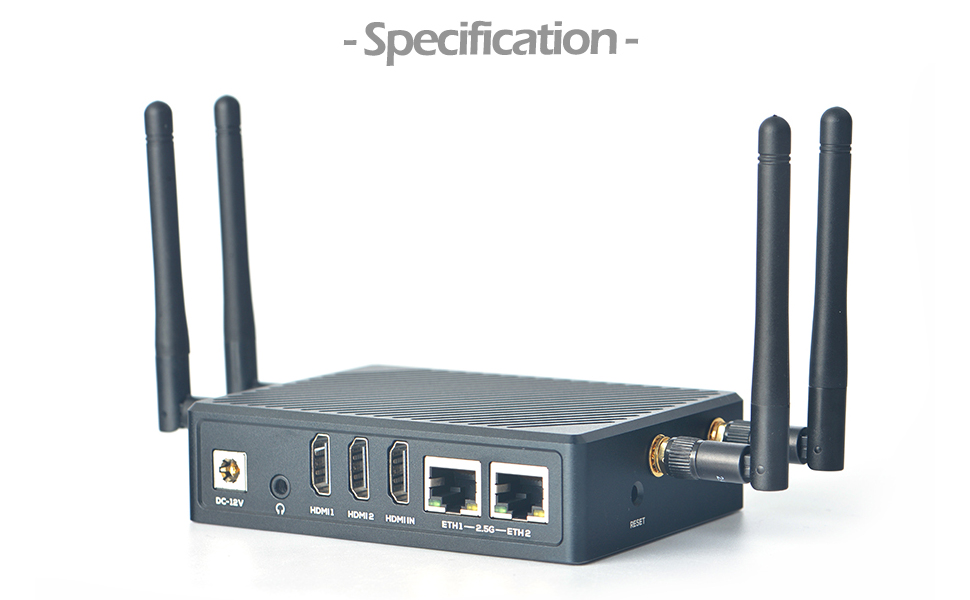

NanoPC-T6 Computer WiFi Router with High Performance Chip

CPU: Rockchip RK3588 (2301 Version)

Number of Cores: Quad-core ARM Cortex-A76 + Quad Core Cortex-A55

Frequency: Cortex-A76(up to 2.4GHz), Cortex-A55(up to 1.8GHz)

GPU: Mali-G610 MP4

Compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2

NPU: 6TOPs, supports INT4/INT8/INT16/FP16Memory: 64-bit 4GB/8GB/16GB RAM LPDDR4X at 2133MHzStorage: 32GB/64GB/256GB eMMC at HS400 mode,MicroSD Slot: MicroSD x1, support up to SDR104 modeSupport PCIe 3.0 x4 for NVMe SSDs up to 2,500 MB/s

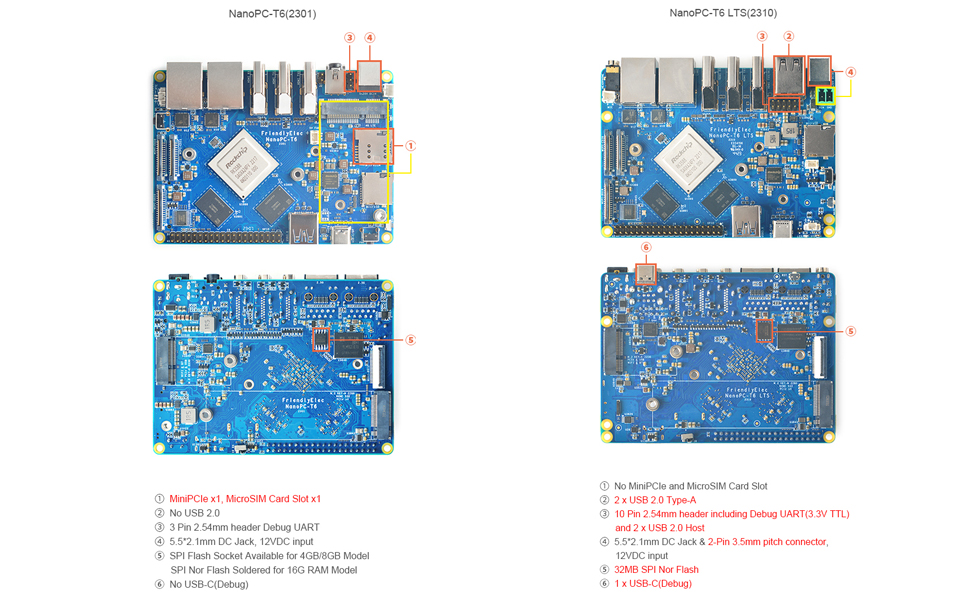

NanoPC-T6 LTS Mini Computer different from NanoPC-T6 Mini Router

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Price

$149.99$149.99 $179.99$179.99
— no data
$158.99$158.99 $179.99$179.99 $214.99$214.99

RAM
4GB LPDDR4x 8GB LPDDR4x 16GB LPDDR4x 4GB LPDDR4x 8GB LPDDR4x 16GB LPDDR4x

Flash
32GB eMMC 64GB eMMC 64GB eMMC 32GB eMMC 64GB eMMC 64GB eMMC

SoC
Rockchip RK3588 Rockchip RK3588 Rockchip RK3588 Rockchip RK3588 Rockchip RK3588 Rockchip RK3588

GPU
Mali-G610 MP4 Mali-G610 MP4 Mali-G610 MP4 Mali-G610 MP4 Mali-G610 MP4 Mali-G610 MP4

NPU
6TOPs 6TOPs 6TOPs 6TOPs 6TOPs 6TOPs

VPU
8K Encoders Decoder 8K Encoders Decoder 8K Encoders Decoder 8K Encoders Decoder 8K Encoders Decoder 8K Encoders Decoder

Size
114.5mm x86mm x30mm 114.5mm x86mm x30mm 114.5mm x86mm x30mm 114.5mm x86mm x30mm 114.5mm x86mm x30mm 114.5mm x86mm x30mm

Weight
395g 395g 395g 395g 395g 395g

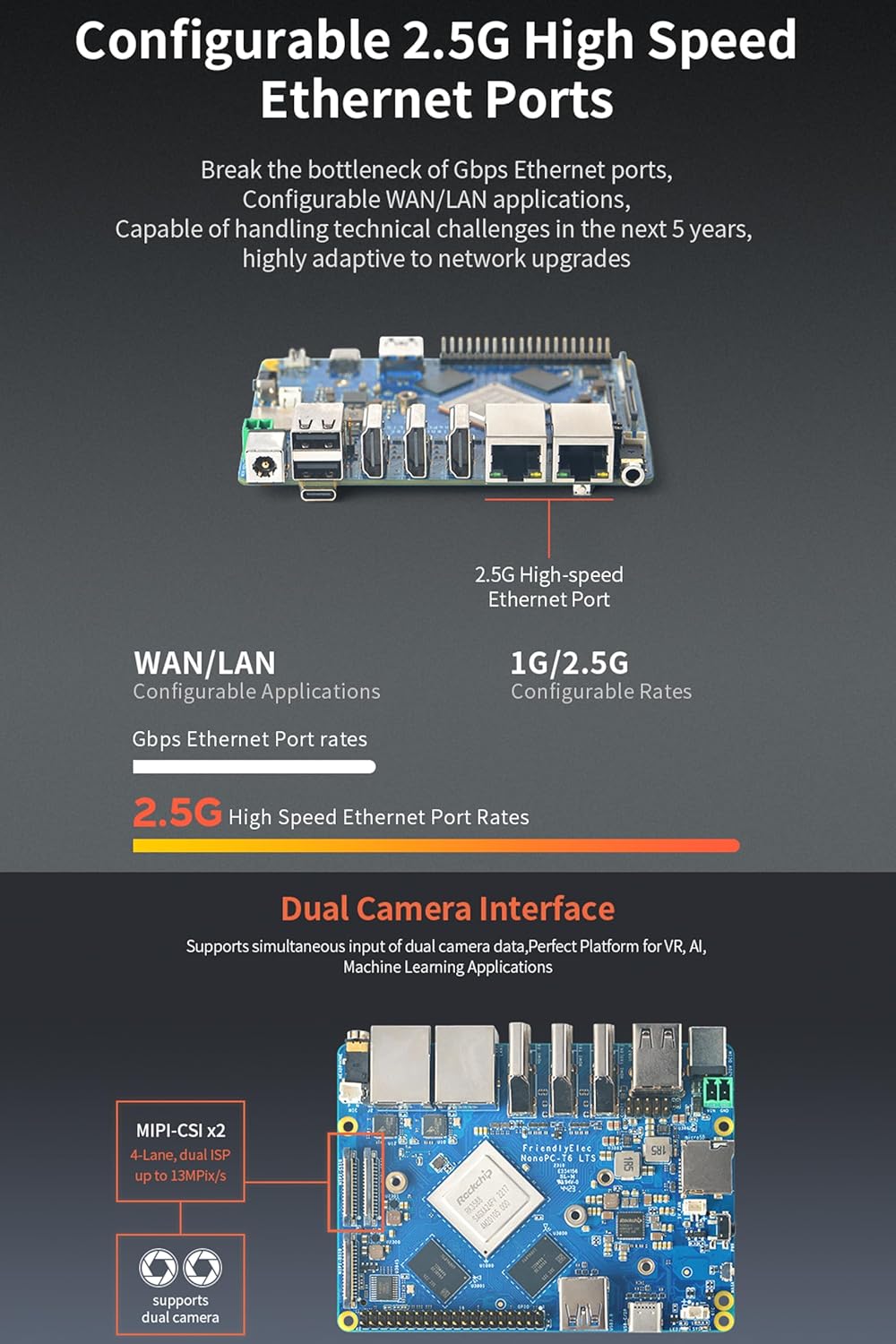

NanoPC-T6 Computer WiFi Router support High Speed PCIe 2.5G Gbps Ethernet

PCIe 2.5G Gigabit-Ethernet x2 (RTL8125BG chip)

Break the bottleneck of Gbps Ethernet ports.Configurable WAN/LAN applications.highly adaptive to network upgrades.Capable of handling technical challenges in the next 5 years.

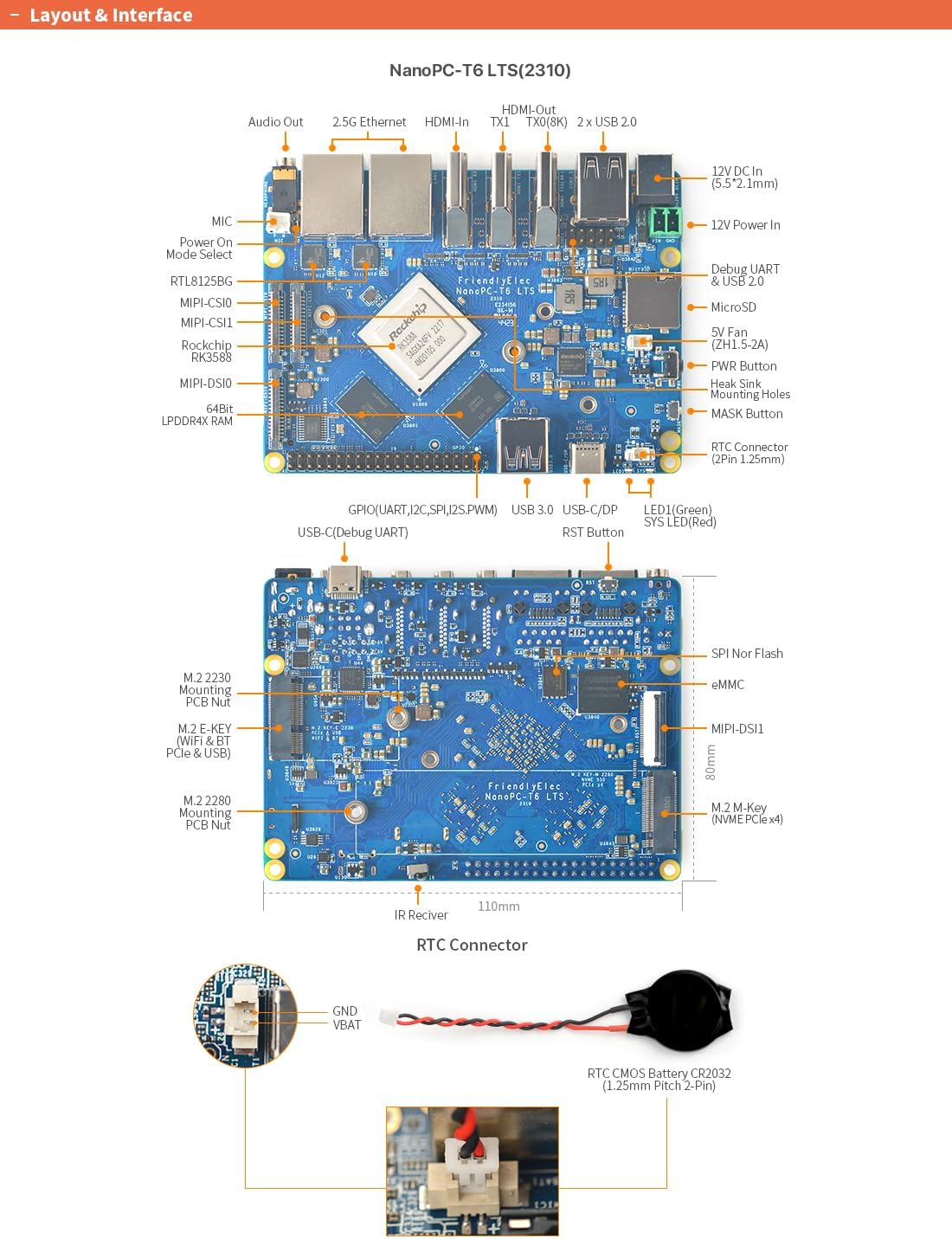

GPIO: 40-pin 2.54mm Header Connector

up to 2x SPIs, 6x UARTs, 1x I2Cs, 8x PWMs, 2x I2Ss, 28x GPIOsDebug: 1 xDebug UART, 3 Pin 2.54mm header, 3V level, 1500000bps

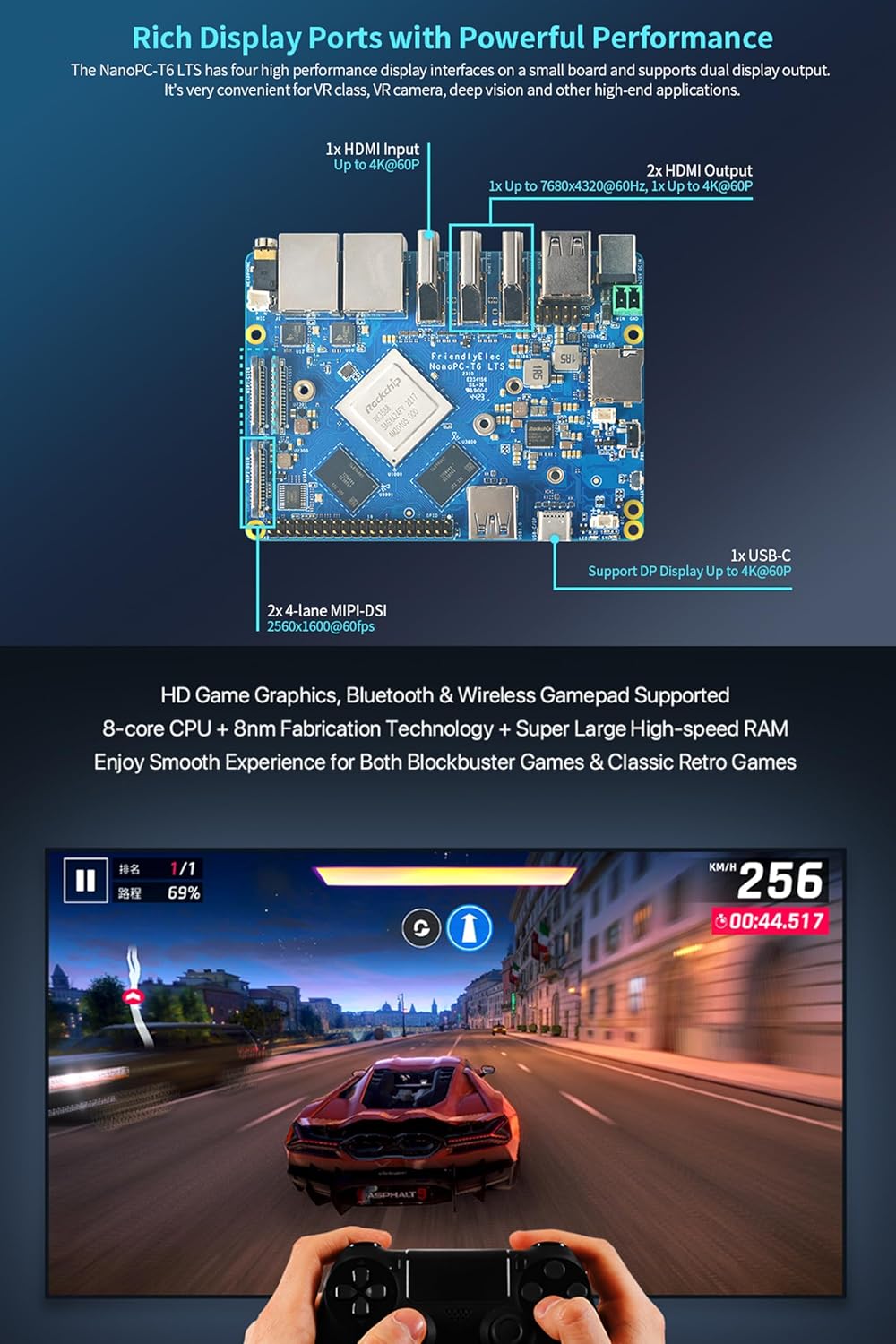

NanoPC-T6 Mini Computer Router with Powerful Performance Rich Display Ports

Rich Display Ports with Powerful Performance

1x Standard HDMI input port, up to 4Kp602x 4-lane MIPI-CSI, compatible with MIPI V1.22x Standard HDMI output ports: Compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation.One support displays up to 7680×4320@60Hz, another one support up to 4Kp60.Support RGB/YUV(up to 10bit) format2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1

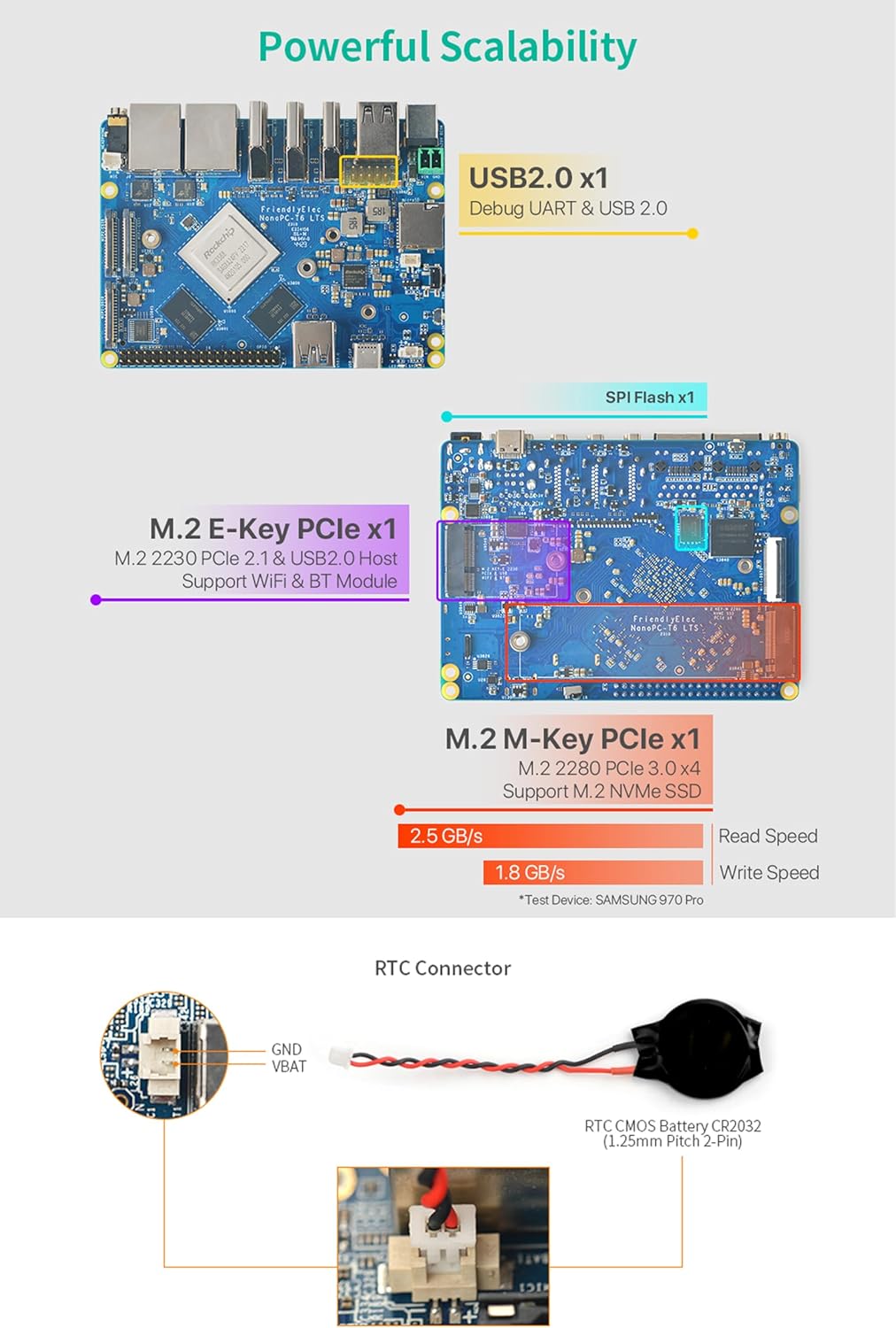

NanoPC-T6 mini computer wifi router with Powerful Scalability

miniPCIe：Support 4GLTE Module with microSIM slot.M.2 M-Key PCle：M.2 2280 PCle 3.0×4, Support M.2 NVMe SSDM.2 E-Key PCle：M.2 2230 PCle 2.1 & USB2.0 Host, support WiFi & BT ModuleOnboard M3 PCB nut for mounting M.2 2230 moduleSPI Flash Socket x1SPI Flash Socket Available for 4GB/8GB ModelSPI Nor Fash Soldered for 16G RAM Modele

NanoPC-T6 Mini Router Support 8K Video Encoders and Bluetooth Wireless Gamepad

HD Game Graphics, Bluetooth & Wireless Gamepad Supported

High Performance VPU：

8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder8-core CPU + 8nm Fabrication TechnologySuper Large High-speed RAMSupports decoding video streams of 8K video steams

—–You can enjoy smoothly experience for both blockbuster games & classic retro games.

OS Support:

FriendlyWrt 21.02, FriendlyWrt 22.03, FriendlyCore Lite 20.04Android 12 Tablet, Android 12 TVDebian 10 Desktop, Debian 11 Desktop, Ubuntu 22.04 DesktopKernel version: Linux-5.10-LTS, U-boot-2017.09

[Open Sourced IoT Gateway] The NanoPC-T6 is an open-sourced mini smart IoT gateway device with two 2.5G Ethernet ports.It is integrated with a Rockchip RK3588 CPU, 64-bit 4GB LPDDR4x RAM at 2133MHz, and 32GB eMMC flash, Mali-G610 MP4 GPU, 6TOPs NPU.
[Rich Hardware Resources] NanoPC-T6 computer router equipped with 1 M.2 B-Key slot, which can be installed and used M.2 NVME solid-state hard disk, and 1 M.2 E-Key slot, which can be installed and used M.2 2230 size WiFi wireless module, and One miniPCIe interface, can install and use 4G LTE module.It also supports booting with TF cards.
[8K Video Decoders and Encoders] NanoPC-T6 wireless wifi router has two HDMI output interfaces and one HDMI IN interface, it can decode and play up to 8K60p H.265/VP9, 8K30p H264 and other formats of video, and can record 4k60p H.265 format video.
[Embedded Custom Development] NanoPC-T6 mini wifi router is very suitable for enterprise customers to customize and develop mini machine vision systems with multiple network ports, and it is also suitable for embedded enthusiasts to discover, explore and create their own unique gameplay.
[Infinite Possibilites] NanoPC-T6 Rockchip RK3588 Single Board Computer is a board featured with multiple Ethernet ports, light NAS and video playing. It also acts as a smart gateway for smart homes, offices, travel hotel and studios. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
[OS/Software] NanoPC-T6 computer wifi router supports booting with TF cards and works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well.
[Wiki] “https://wiki.friendlyelec.com/wiki/index.php/NanoPC-T6#Get_Started”.Any after-Sales Privems, Please Contact us by click “Waypondev” store and ask a question or leave the message in our forum by “forum.youyeetoo .com/”.
