Wifi Tuya Access Control System Kit Outdoor Waterproof RFID Access Controller Touch Keypad 125KHz 13.56MHz + 180KG Electric Magnetic Lock, Smart Phone APP Password Unlock

Product description

QTTYELOK WiFi Tuya Access Control System Kit Outdoor Waterproof RFID Keypad 125KHz 13.56MHz + 180KG Electric Magnetic Lock, Smart Phone APP Unlock

Main feature

1) Made of high quality plastic, touch screen panel keypad, beautiful appearance.2) Can open the door with Wifi Tuya APP, RFID Cards, Password, Door exit button.3) All programming can be done on the keypad, don’t need any software. Can set Administrator.4) A complete set access control system products, suitable for wooden door, metal door, glass door.

IP68 Waterproof, can be installed outdoor

Multiple verification methods: Tuya APP / RFID Card / Password unlock methods

Working with 125KHz and 13.56MHz dual frequency. Support 10000 large user capacity. Mobile phone APP remotely view the latest 10000 lock opening information!

About Tuya APP

1) Scan QR code, or Search “Tuya” on App store to download APP.2) Enter *123456 # 041# on the access control keypad, wait for 5 seconds for the indicator light to flash and start pairing, pair with the mobile phone via WiFi.3) Connect with available devices. Choose Wi-Fi and enter password.4) APP language supports: Chinese, English.5) Can add Password, RFID Cards on the APP, it’s very convenient.6) Can unlock the door with Tuya APP unlocking button, or Tuya password.7) A periodic password can be set, and the password is valid for a certain period of time.8) Can set temporary password to open the door.9) Can click “Member manage” to add administrator and ordinary member.10) Can view unlock records. Click reminder information to view logs.

180KG Electric Magnetic Lock

Material: Aluminum alloy shell + iron plateHolding force: 180KG/350lbsWorking Voltage: DC12VWorking Current: 380-430mASuitable for door: metal, wooden, glass doorWorking mode: locked when power on, unlocked when power offWaterproof: Yes. Can be install outside

Access Controller

Support Wifi Tuya no matter where you are. It’s very convenient!

Add uersUnlock the doorView the latest lock opening informationSet the door keep open mode

IP68 Waterproof, can be installed outdoorWorking temperature: -20C ~ 70CHas blue backlight, work indicating light, very convenient to use even at dark.Has a door bell button. Can install a DC12V wired door bell.Touch screen panel keypad, beautiful appearance.

Material: high quality PlasticWorking voltage: DC 12VWorking current: ≤ 30mAUser capacity: 10000Working frequency: 125KHz and 13.56MHz dual frequencyCard reading type: support EM ID and MF1K IC compatible cardIdentification method: Tuya APP, RFID Card, PasswordAdministrator: can set Management cardWiegand signal: has WG26/34 outputProduct size: 115*72*17mm

Power Supply

Material: stellAC input: Standard AC100V-260V / 50-60HZDC output: DC12V/ 3 ATime delay: 0-15 seconds adjustable.Dimension: 140X67X33mm

RFID Keyfobs

Material: ABSOperating frequency: 13.56MHzChip: M-i-fare1kDetection range: 0-10cmColor: BlueQuantity: 10pcs

Door Exit Button

Material: plasticDurability Test: 500000 timesContact Rating: 3A/36VDCInput: 12VDCOutput: NO/NC/COMSuitable for Door: Hollow DoorDimension: 86*86*20mm

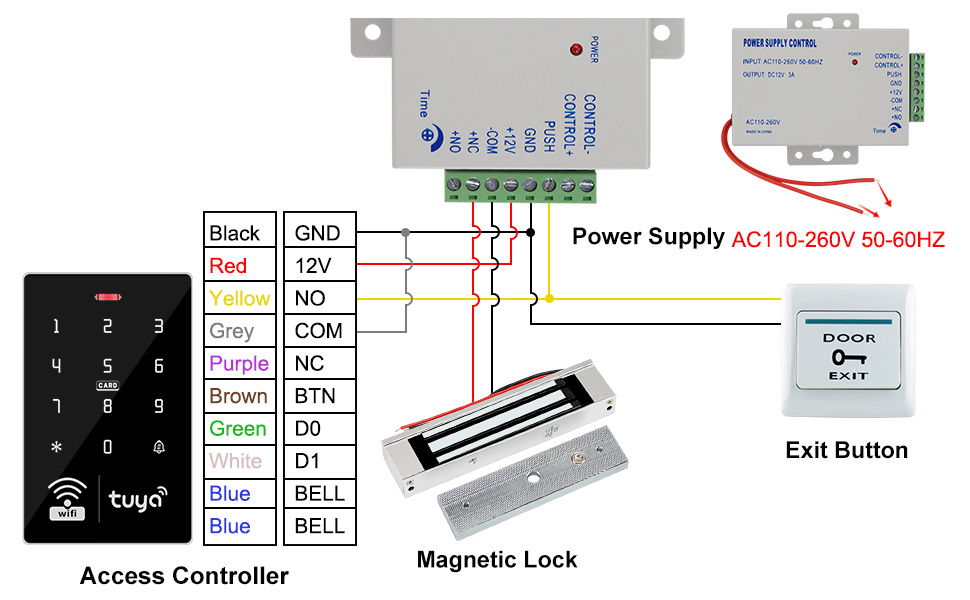

Wiring Diagram

Step1: Connect the cables of access controller, Door exit button, Electric lock to the DC12V Ppower supply.Step2: Connect the cables of the DC12V power supply to your AC Power.1) Connect Access Controller to Power Supply:

GND (black cable) to GND

12V (red cable) to +12V

NO (yellow cable) to PUSH

COM (grey cable) to GND

2) Connect the cables of Electric lock to NC, COM of the Power supply.3) Connect the cables of Door exit button to PUSH, GND of the Power supply.

❤ Supports 10,000 large user capacity. Supports RFID Cards, Password, RFID Card plus Password, Tuya APP verification mode. The door can be set normally open mode.
❤ Supports Wifi Tuya. You can use the Tuya APP to add users, open the door, view unlock records, it is very convenient. Tuya APP supports Chinese, English language.
❤ Working with 125KHz and 13.56MHz dual frequency, can set management card. All programming can be done on the keypad and Tuya APP, don’t need any software.
❤ Made of high quality plastic, touch screen panel. The access control keypad is IP68 waterproof, can be used outside. Has a door bell button. Has backlight, work indicating light, very convenient to use even at dark.
❤ High quality electric magnetic lock, holding force with 180kg/350lbs. The door will locked when power turn on, unlocked when power turn off. Very suitable for wooden door, metal door, glass door.
